MC74ACT564DWR2
onsemi
onsemi
IC FF D-TYPE SNGL 8BIT 20SOIC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MC74ACT564DWR2 Logic Flip Flops by onsemi provide dependable operation for your digital systems. Key features include edge-triggered functionality, minimal propagation delay, and compatibility with TTL/CMOS interfaces. Applications range from microprocessor systems to embedded controllers. Submit your inquiry to receive detailed specifications!
Specifications
- Product Status: Obsolete
- Function: Standard
- Type: D-Type
- Output Type: Tri-State, Inverted
- Number of Elements: 1
- Number of Bits per Element: 8
- Clock Frequency: 85 MHz
- Max Propagation Delay @ V, Max CL: 10.5ns @ 5V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 24mA, 24mA
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Iq): 8 µA
- Input Capacitance: 4.5 pF
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 20-SOIC
- Package / Case: 20-SOIC (0.295", 7.50mm Width)
Related Products
Microchip Technology
SY10EL51ZG
NXP USA Inc.
74LVC109DB,112
Toshiba Semiconductor and Storage

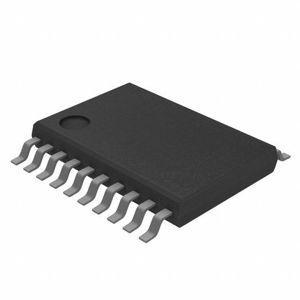

TC74LCX574FTELM
Microchip Technology

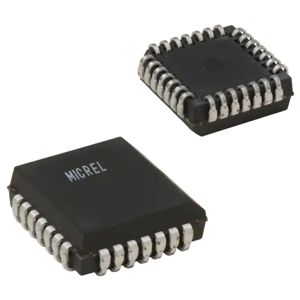

SY100E452JC
Texas Instruments

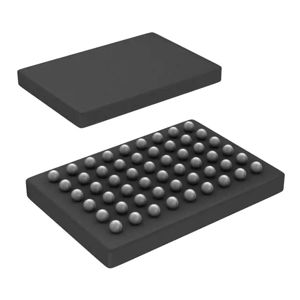

74ALVCH16374GRDR
National Semiconductor
DM74S112J
Texas Instruments
SN74AC74PWRG4
Nexperia USA Inc.
74LVC74AD,112
Texas Instruments

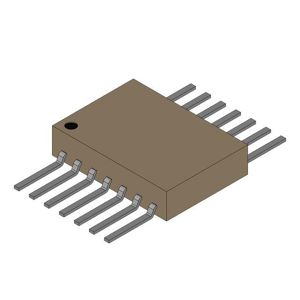

SNJ54LS74AW
