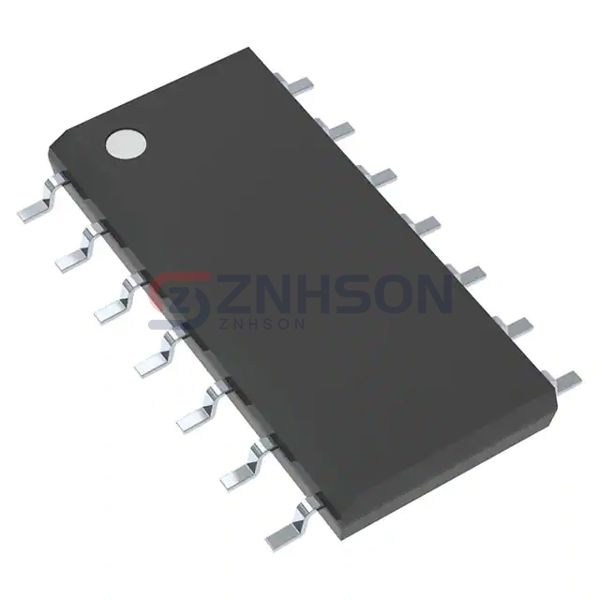

MC14013BDR2G
onsemi
onsemi
IC FF D-TYPE DUAL 1BIT 14SOIC
$0.52
Available to order
Reference Price (USD)
1+
$0.52000
500+
$0.5148
1000+
$0.5096
1500+
$0.5044
2000+
$0.4992
2500+
$0.494
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MC14013BDR2G series by onsemi delivers advanced Logic Flip Flop solutions for modern electronics. With features like master-slave configuration, preset/clear options, and Pb-free construction, these devices meet rigorous industry standards. Perfect for robotics, instrumentation, and power management circuits. Email us for technical documentation!
Specifications
- Product Status: Active
- Function: Set(Preset) and Reset
- Type: D-Type
- Output Type: Complementary
- Number of Elements: 2
- Number of Bits per Element: 1
- Clock Frequency: 14 MHz
- Max Propagation Delay @ V, Max CL: 100ns @ 15V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 8.8mA, 8.8mA
- Voltage - Supply: 3V ~ 18V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 5 pF
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
