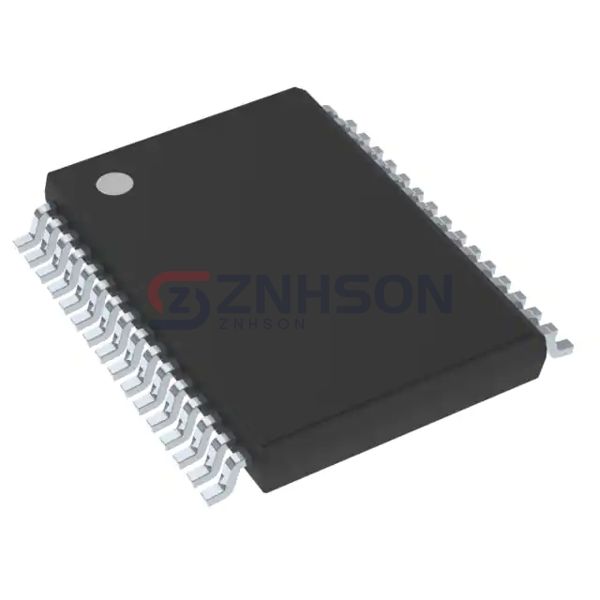

MC10XS3425EK

NXP USA Inc.

Manufacturer

NXP USA Inc.

Description:

IC PWR SWITCH N-CHAN 1:1 32HSOP

Datasheet:

MC10XS3425EK Datasheet

$0.00

Available to order

Reference Price (USD)

$6.61000

10+

$5.97200

42+

$5.69381

126+

$4.94397

504+

$4.30512

1,008+

$3.74962

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Choose the NXP USA Inc. MC10XS3425EK for advanced Power Distribution Switches and Load Drivers that meet the highest standards of quality and innovation. With its comprehensive protection features, high efficiency, and compact form factor, this IC is perfect for modern electronic designs. Whether for automotive, industrial, or consumer applications, the MC10XS3425EK delivers consistent and reliable performance. Request more information now and let us assist you in optimizing your power solutions.

Specifications

Product Status: Obsolete
Switch Type: General Purpose
Number of Outputs: 4
Ratio - Input:Output: 1:1
Output Configuration: High Side
Output Type: N-Channel
Interface: SPI
Voltage - Load: 6V ~ 20V
Voltage - Supply (Vcc/Vdd): 3V ~ 5.5V
Current - Output (Max): 6A
Rds On (Typ): 10mOhm, 25mOhm
Input Type: -
Features: Internal PWM, Slew Rate Controlled, Watchdog Timer
Fault Protection: Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Supplier Device Package: 32-HSOP
Package / Case: 32-SSOP (0.295", 7.50mm Width) Exposed Pad
