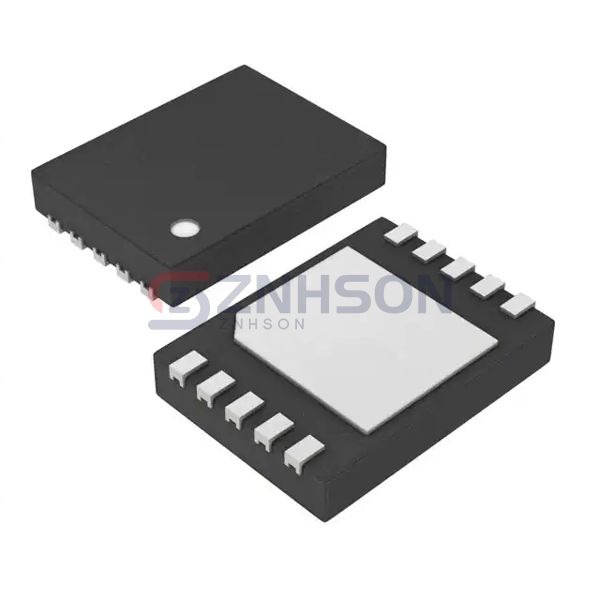

MAX4685ETB+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC ANLG SWITCH SPDT DUAL TDFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize signal routing with Analog Devices Inc./Maxim Integrated MAX4685ETB+ Interface ICs, featuring state-of-the-art Analog Switches, Multiplexers, and Demultiplexers. These components are built for precision, offering low leakage current and high-speed operation in automotive infotainment, networking, and more. Choose Analog Devices Inc./Maxim Integrated for components that exceed expectations. Submit your inquiry today and let us provide the perfect solution for your technical challenges.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 800mOhm
- Channel-to-Channel Matching (ΔRon): 60mOhm (Typ)
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 50ns, 30ns
- -3db Bandwidth: -
- Charge Injection: 200pC
- Channel Capacitance (CS(off), CD(off)): 84pF, 37pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -68dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 10-WFDFN Exposed Pad
- Supplier Device Package: 10-TDFN (3x4)
Related Products
Texas Instruments

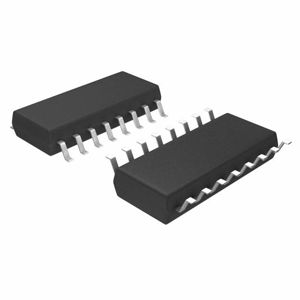

CD74HC4052NSRG4
Texas Instruments

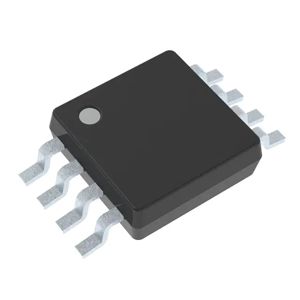

TS5A2053DCURG4
Harris Corporation
HI1-5047A-2
Analog Devices Inc.
ADG749BKS-REEL7
onsemi

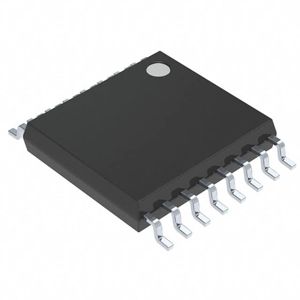

NLVAST4051DTR2G
Alpha & Omega Semiconductor Inc.

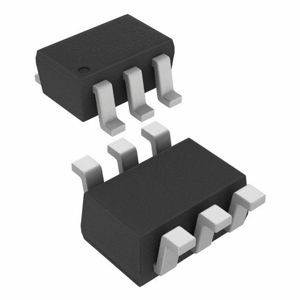

AOZ6135HI
