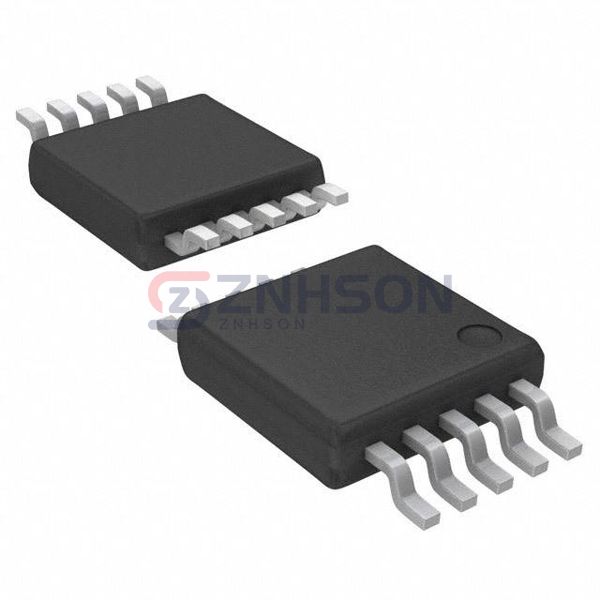

MAX4684EUB+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH DUAL SPDT 10UMAX
$5.27
Available to order
Reference Price (USD)
1+
$5.27000
500+
$5.2173
1000+
$5.1646
1500+
$5.1119
2000+
$5.0592
2500+
$5.0065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency with Analog Devices Inc./Maxim Integrated MAX4684EUB+ Interface ICs, delivering top-tier Analog Switches, Multiplexers, and Demultiplexers for your electronic designs. These components excel in test equipment, instrumentation, and IoT devices, providing fast switching and minimal power loss. Trust Analog Devices Inc./Maxim Integrated for high-performance solutions that stand the test of time. Don't hesitate request a quote now and let us help you achieve optimal performance in your next project.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 800mOhm
- Channel-to-Channel Matching (ΔRon): 60mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 50ns, 30ns
- -3db Bandwidth: -
- Charge Injection: 200pC
- Channel Capacitance (CS(off), CD(off)): 84pF, 37pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -68dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-uMAX/uSOP
