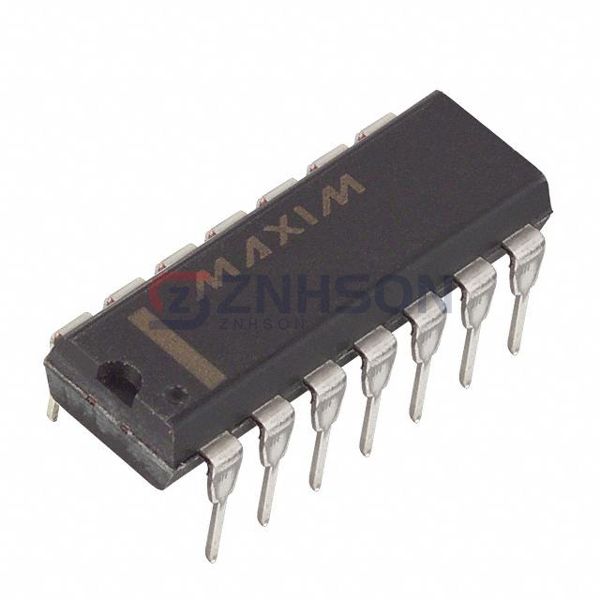

MAX4614CPD+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH QUAD SPST 14DIP
$4.98
Available to order
Reference Price (USD)
1+
$2.43000
10+
$2.18500
25+
$2.06560
100+
$1.83600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Analog Devices Inc./Maxim Integrated MAX4614CPD+ series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Analog Devices Inc./Maxim Integrated's expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm
- Voltage - Supply, Single (V+): 2V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 12ns, 10ns
- -3db Bandwidth: 70MHz
- Charge Injection: 6.5pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -96dB @ 100kHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Through Hole
- Package / Case: 14-DIP (0.300", 7.62mm)
- Supplier Device Package: 14-PDIP
