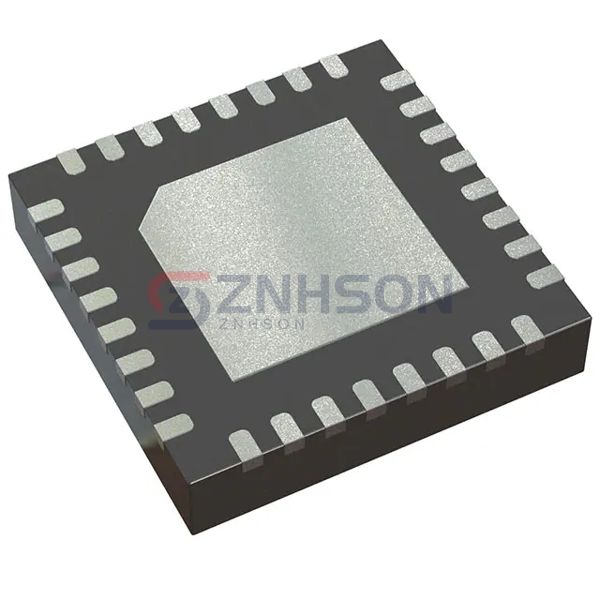

MAX15009ATJ+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC REG LIN POS ADJ 300MA 32TQFN
$2.25
Available to order
Reference Price (USD)
1+
$2.25000
500+
$2.2275
1000+
$2.205
1500+
$2.1825
2000+
$2.16
2500+
$2.1375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with Analog Devices Inc./Maxim Integrated's MAX15009ATJ+, a high-performance Linear Voltage Regulator from our PMIC - Voltage Regulators - Linear category. These ICs are crafted to deliver precise voltage control, making them suitable for sensitive electronic applications. With features like fast transient response, wide input voltage range, and excellent thermal performance, MAX15009ATJ+ is perfect for use in power supplies, audio equipment, and more. Analog Devices Inc./Maxim Integrated is a trusted name in integrated circuits, offering reliability and innovation. Contact our sales team today to place an order or request technical support.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Adjustable (Fixed)
- Number of Regulators: 1
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 1.8V, (5V)
- Voltage - Output (Max): 11V
- Voltage Dropout (Max): 1.5V @ 300mA
- Current - Output: 300mA
- Current - Quiescent (Iq): 85 µA
- Current - Supply (Max): 500 µA
- PSRR: 60dB (100Hz)
- Control Features: Current Limit, Enable, Hold, Reset
- Protection Features: Load Dump, Over Temperature, Over Voltage, Short Circuit
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 32-WFQFN Exposed Pad
- Supplier Device Package: 32-TQFN (5x5)
Related Products
Rohm Semiconductor
BD3572YFP-ME2
ABLIC Inc.
S-1135A28-A6T1U
Nisshinbo Micro Devices Inc.
RP130K121D-TR-Y
Texas Instruments
TPS71710DCKT
Analog Devices Inc.
LT1129IT#06PBF
ABLIC Inc.
S-818A27AUC-BGHT2G
Diodes Incorporated

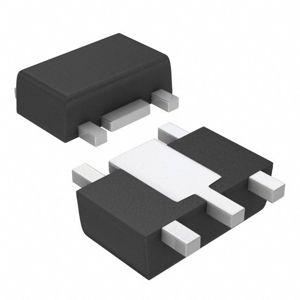

AP2112R5-1.2TRG1
Microchip Technology

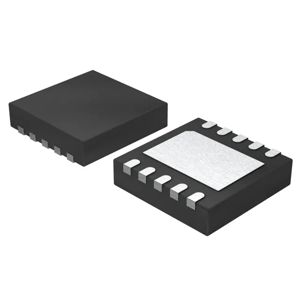

MIC2212-KNYML-TR
