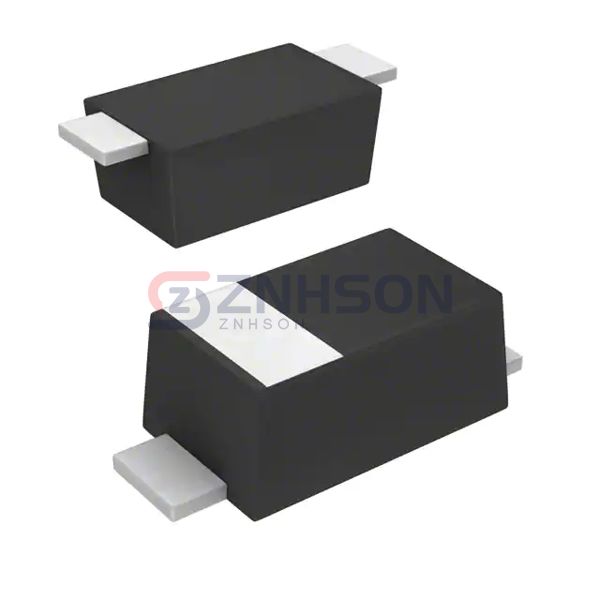

MA22D2300L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 25V 1A MINI2
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency with Panasonic Electronic Components's MA22D2300L Single Rectifier Diodes, the go-to choice for professionals seeking reliable power rectification. Suitable for high-frequency applications, these diodes provide fast recovery times and low conduction losses. Commonly used in switch-mode power supplies, welding equipment, and battery chargers, they are built to withstand harsh environments. Features include high surge current ratings and robust packaging. Don't miss out request a sample or quote today!
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 25 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 530 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 40 µA @ 20 V
- Capacitance @ Vr, F: 45pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SOD-123F
- Supplier Device Package: Mini2-F1
- Operating Temperature - Junction: 150°C (Max)
