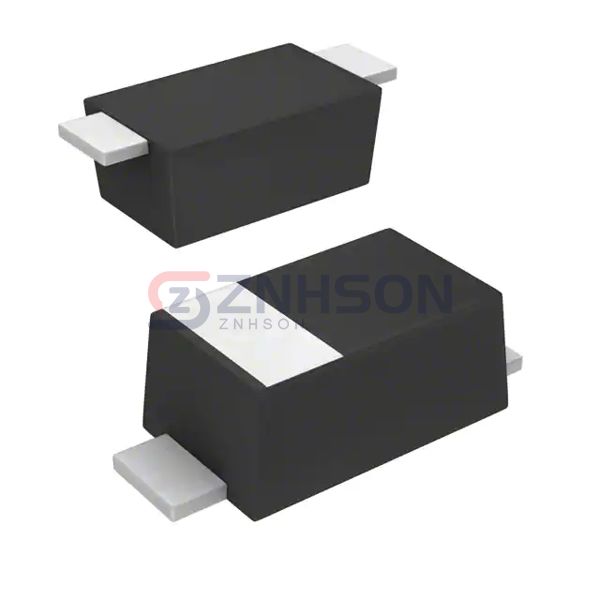

MA22D1500L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 20V 1A MINI2
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with Panasonic Electronic Components's MA22D1500L Single Rectifier Diodes, engineered for precision and durability. Perfect for rectification circuits, these diodes offer fast switching, high efficiency, and minimal power loss. Applications span across automotive systems, renewable energy solutions, and telecommunications. Key features include high temperature tolerance, low leakage current, and superior surge protection. Trust Panasonic Electronic Components for components that meet the highest industry standards. Ready to order? Submit your inquiry now!
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 430 mV @ 1 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 10 ns
- Current - Reverse Leakage @ Vr: 100 µA @ 20 V
- Capacitance @ Vr, F: 30pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SOD-123F
- Supplier Device Package: Mini2-F1
- Operating Temperature - Junction: 150°C (Max)
