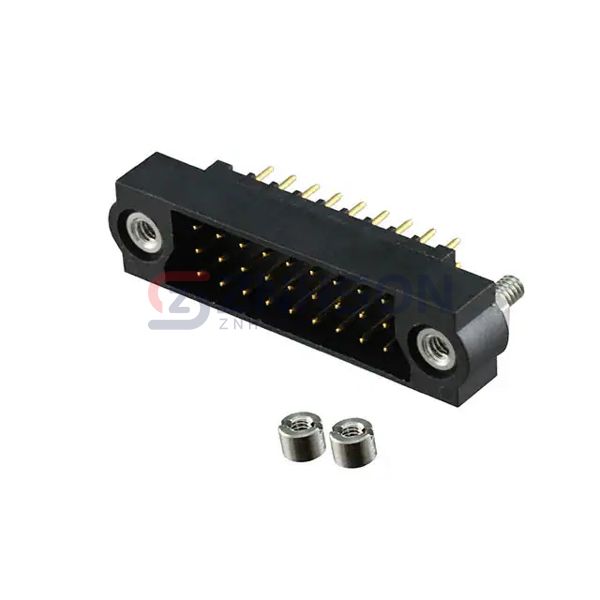

M83-LMT1M2N27-0000-000

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.079" (2.00mm)
• Number of Positions: 27
• Number of Rows: 3
• Row Spacing - Mating: 0.079" (2.00mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Threaded
• Contact Length - Mating: -
• Contact Length - Post: 0.126" (3.20mm)
• Overall Contact Length: -
• Insulation Height: 0.240" (6.10mm)
• Contact Shape: Circular
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 29.5µin (0.75µm)
• Contact Finish - Post: -
• Contact Material: Phosphor Bronze
• Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
• Features: Mating Flange, Mounting Flange, Mounting Hardware
• Operating Temperature: -55°C ~ 125°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 2.2A per Contact
• Voltage Rating: 120V
