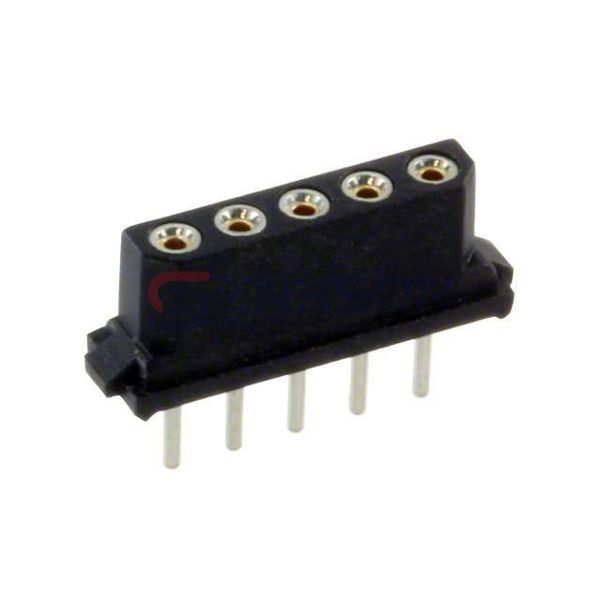

M80-8400542
Harwin Inc.
Harwin Inc.
CONN RCPT 5POS 0.079 GOLD PCB
$4.91
Available to order
Reference Price (USD)
1+
$3.85000
18+
$3.69833
108+
$3.08204
504+
$2.61970
1,008+
$2.23445
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-8400542 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are engineered for precision and reliability. With features like gold-plated contacts and IP-rated housings, they excel in critical applications. From consumer electronics to industrial controls, they ensure flawless operation. Request a sample or quote today!
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 5
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.202" (5.14mm)
- Contact Length - Post: 0.126" (3.20mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 7.23mm, 7.83mm
- Ingress Protection: -
- Features: -
- Current Rating (Amps): -
- Voltage Rating: 800V
