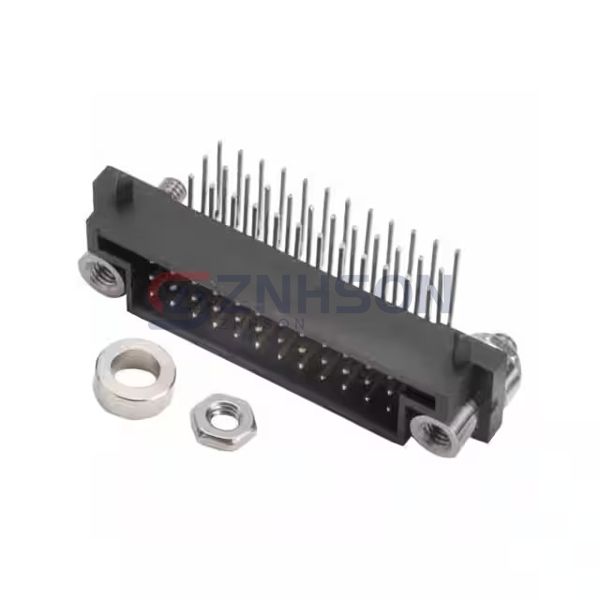

M80-7015142
Harwin Inc.
Harwin Inc.
CONN HEADER R/A 51POS 2MM
$12.39
Available to order
Reference Price (USD)
1+
$12.38700
500+
$12.26313
1000+
$12.13926
1500+
$12.01539
2000+
$11.89152
2500+
$11.76765
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-7015142 Harwin Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 51
- Number of Rows: 3
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: -
- Insulation Height: 0.358" (9.10mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: Board Guide, Mating Flange, Mating Hardware
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A per Contact
- Voltage Rating: 120V
