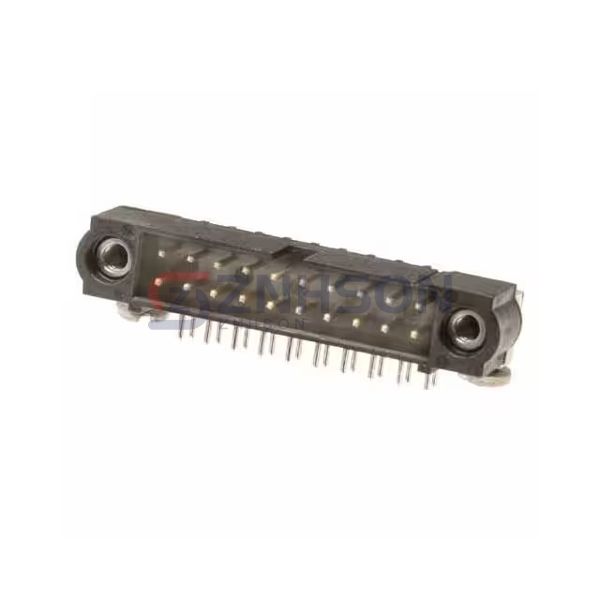

M80-5L11205M5
Harwin Inc.
Harwin Inc.
CONN HDR 2MM PCB R/A 12POS
$17.67
Available to order
Reference Price (USD)
1+
$17.67483
500+
$17.4980817
1000+
$17.3213334
1500+
$17.1445851
2000+
$16.9678368
2500+
$16.7910885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-5L11205M5 Harwin Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.218" (5.55mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 800VAC/DC
