M80-5001042

Harwin Inc.

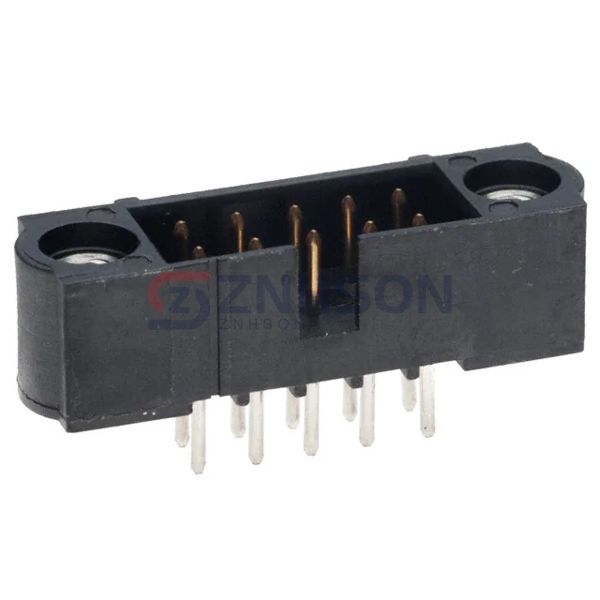

M80-5001042 Preview
Harwin Inc.
CONN HEADER VERT 10POS 2MM
$11.10
Available to order
Reference Price (USD)
1+
$9.06000
13+
$8.66615
104+
$7.28712
507+
$6.10544
1,001+
$5.39643
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.079" (2.00mm)
  • Number of Positions: 10
  • Number of Rows: 2
  • Row Spacing - Mating: 0.079" (2.00mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Threaded
  • Contact Length - Mating: -
  • Contact Length - Post: 0.128" (3.25mm)
  • Overall Contact Length: -
  • Insulation Height: 0.220" (5.60mm)
  • Contact Shape: Circular
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 29.5µin (0.75µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
  • Features: Keying Slot, Mating Flange
  • Operating Temperature: -55°C ~ 125°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): 2.2A
  • Voltage Rating: 120V
