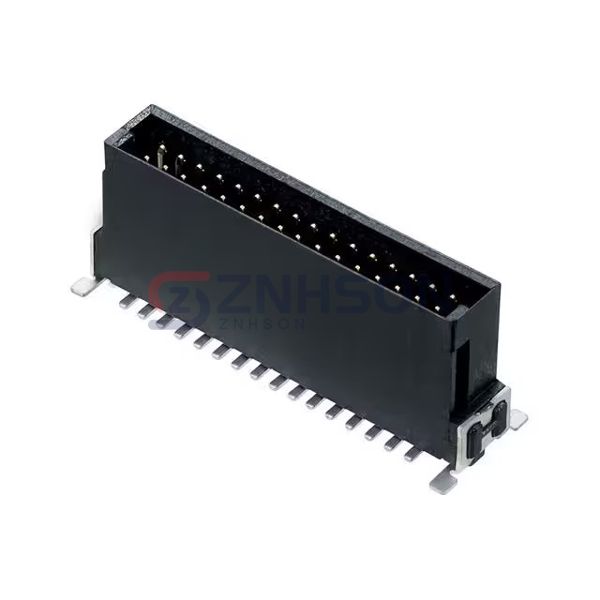

M55-7023242R
Harwin Inc.
Harwin Inc.
CONN HDR 1.27MM SMD 32POS
$1.89
Available to order
Reference Price (USD)
1+
$1.89000
500+
$1.8711
1000+
$1.8522
1500+
$1.8333
2000+
$1.8144
2500+
$1.7955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with M55-7023242R Harwin Inc. Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.388" (9.86mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 1.00µin (0.025µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: 100VAC
Related Products
Samtec Inc.
HTSW-105-07-H-S
Molex
0878332020
Samtec Inc.
FTMH-145-02-F-DV-ES
TE Connectivity AMP Connectors
1-794077-0
Preci-Dip
892-80-044-20-001101
TE Connectivity AMP Connectors
1734829-3
Samtec Inc.
TSM-109-01-LM-DV
Samtec Inc.
MMT-107-02-F-DH-P-TR
Preci-Dip

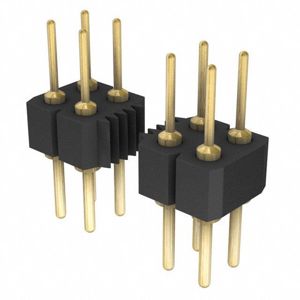

450-10-232-00-001101
