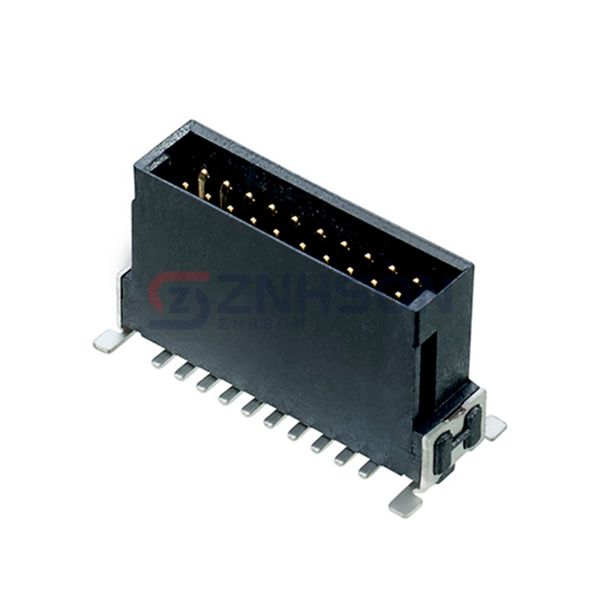

M55-7022042R
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 20POS 1.27MM
$1.48
Available to order
Reference Price (USD)
300+
$0.86600
600+
$0.77940
900+
$0.75776
1,500+
$0.64950
3,000+
$0.62785
7,500+
$0.60620
15,000+
$0.56290
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M55-7022042R Harwin Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Harwin Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.388" (9.86mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 1.00µin (0.025µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-112-17-L-D
Samtec Inc.
TMMH-107-01-T-D
HARTING
09185606923
TE Connectivity AMP Connectors

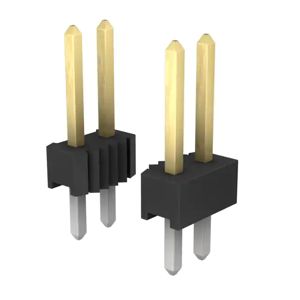

4-103240-0-20
Amphenol ICC (FCI)

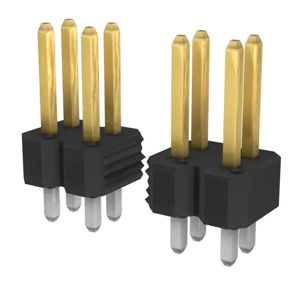

77313-101-68LF
JST Sales America Inc.

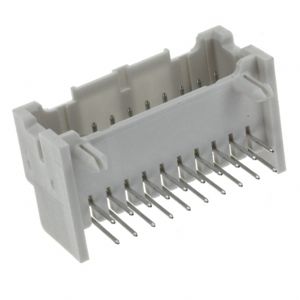

S20B-XADSS-N(LF)(SN)
Samtec Inc.

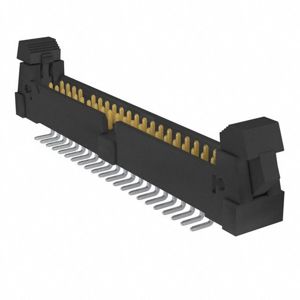

EHT-122-01-S-D-SM-10-P
Sullins Connector Solutions

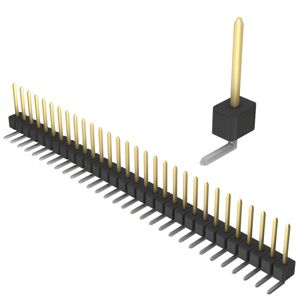

PBC30SGAN
Samtec Inc.

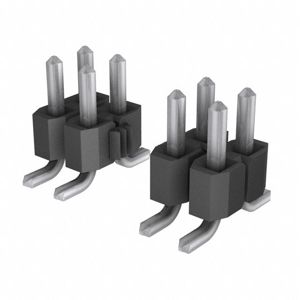

TSM-134-04-T-DV
