M50-3630542
Harwin Inc.
Harwin Inc.

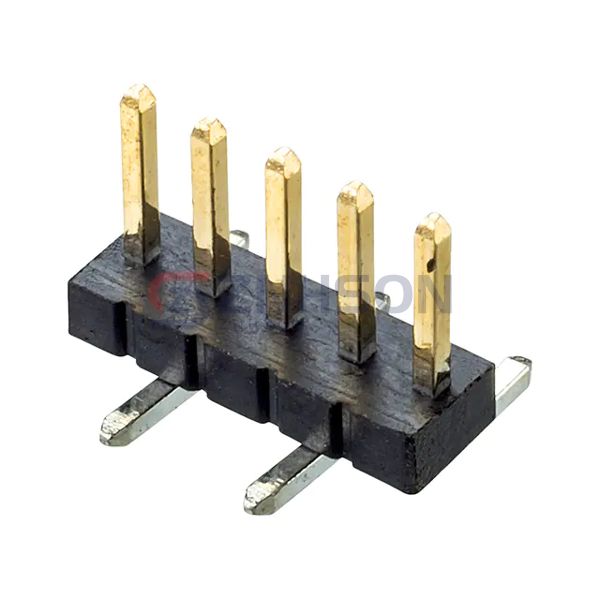

CONN HEADER SMD 5POS 1.27MM
$0.49
Available to order
Reference Price (USD)
1+
$0.44000
91+
$0.30604
182+
$0.29401
546+
$0.25200
1,001+
$0.21000
5,005+
$0.18000
10,010+
$0.16800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M50-3630542 Harwin Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
