M50-3550842
Harwin Inc.
Harwin Inc.

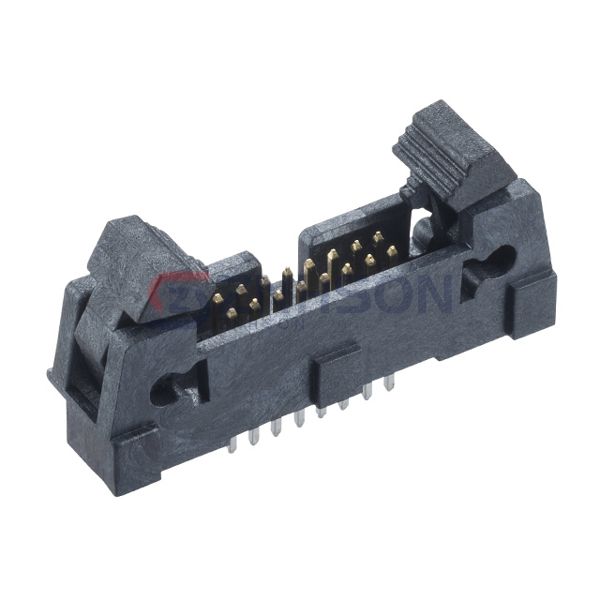

CONN HEADER VERT 16POS 1.27MM
$1.78
Available to order
Reference Price (USD)
1,817+
$1.40360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with M50-3550842 Harwin Inc. Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.107" (2.71mm)
- Overall Contact Length: 0.351" (8.92mm)
- Insulation Height: 0.325" (8.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.75A per Contact
- Voltage Rating: -
