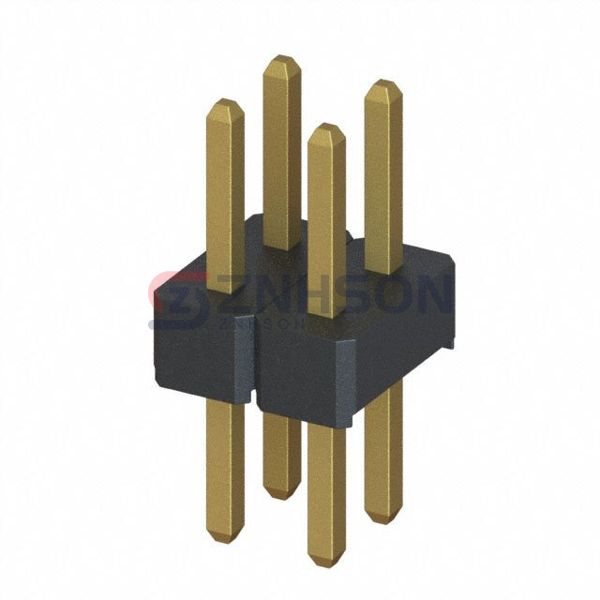

M22-2020205
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 4POS 2MM
$0.40
Available to order
Reference Price (USD)
1+
$0.31000
10+
$0.29100
100+
$0.20340
500+
$0.17430
1,000+
$0.14525
5,000+
$0.12450
10,000+
$0.11620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M22-2020205 Harwin Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.138" (3.50mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.331" (8.40mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
