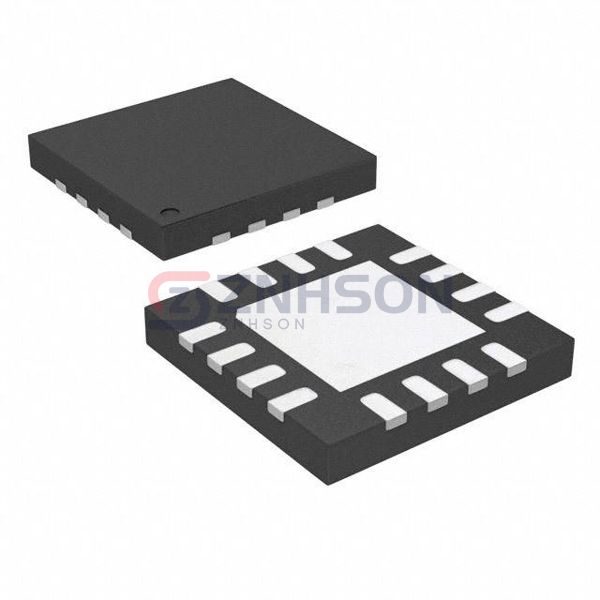

LTC3786EUD#TRPBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG CTRLR MULT TOPOLOGY 16QFN

Datasheet:

LTC3786EUD#TRPBF Datasheet

$6.84

Available to order

Reference Price (USD)

$6.84000

500+

$6.7716

1000+

$6.7032

1500+

$6.6348

2000+

$6.5664

2500+

$6.498

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The LTC3786EUD#TRPBF from Analog Devices Inc. is a top-tier DC DC Switching Controller that excels in power efficiency and reliability. Designed for modern electronics, this PMIC voltage regulator supports a variety of applications, including servers, medical equipment, and portable devices. With features like over-current protection and low standby power consumption, Analog Devices Inc.'s LTC3786EUD#TRPBF ensures your systems run smoothly and efficiently. Ready to enhance your power management? Get in touch with our team for more information and a customized quote.

Specifications

Product Status: Active
Output Type: Transistor Driver
Function: Step-Up, Step-Up/Step-Down
Output Configuration: Positive
Topology: Boost, Flyback, SEPIC
Number of Outputs: 1
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 4.5V ~ 38V
Frequency - Switching: 105kHz ~ 760kHz
Duty Cycle (Max): 96%
Synchronous Rectifier: Yes
Clock Sync: No
Serial Interfaces: -
Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 16-WFQFN Exposed Pad
Supplier Device Package: 16-QFN (3x3)
