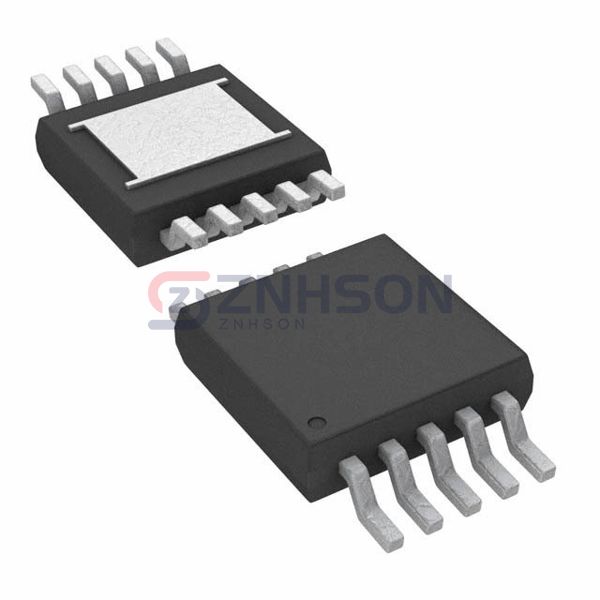

LT5401AHMSE#TRPBF
Analog Devices Inc.
Analog Devices Inc.
MATCHED PRECISION RESISTOR NETWO
$9.33
Available to order
Reference Price (USD)
1+
$9.33000
500+
$9.2367
1000+
$9.1434
1500+
$9.0501
2000+
$8.9568
2500+
$8.8635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Analog Devices Inc.'s LT5401AHMSE#TRPBF resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every LT5401AHMSE#TRPBF unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 350, 700
- Tolerance: ±7.5%
- Number of Resistors: 8
- Resistor Matching Ratio: ±0.003%
- Resistor-Ratio-Drift: ±0.2ppm/°C
- Number of Pins: 10
- Power Per Element: -
- Temperature Coefficient: ±25ppm/°C
- Operating Temperature: -40°C ~ 125°C
- Applications: Voltage Divider (TCR Matched)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 10-MSOP-EP
- Size / Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
- Height - Seated (Max): 0.043" (1.10mm)
