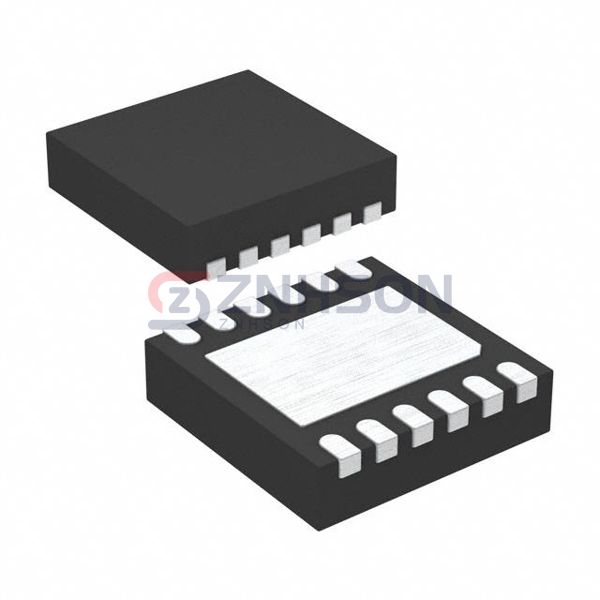

LT3094EDD#TRPBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LIN NEG ADJ 500MA 12DFN

Datasheet:

LT3094EDD#TRPBF Datasheet

$7.54

Available to order

Reference Price (USD)

2,500+

$3.53600

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Explore the exceptional LT3094EDD#TRPBF Linear Voltage Regulator by Analog Devices Inc., a standout in our PMIC - Voltage Regulators - Linear lineup. Designed for optimal power efficiency, these ICs provide seamless voltage regulation for a wide range of electronic devices. Features such as overcurrent protection, low noise output, and compact design make LT3094EDD#TRPBF a versatile choice for applications in IoT, automotive, and industrial automation. Analog Devices Inc.'s commitment to quality ensures that every component meets the highest industry standards. Get in touch with us today to request a sample or discuss your specific requirements.

Specifications

Product Status: Active
Output Configuration: Negative
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): -2.3V
Voltage - Output (Min/Fixed): -19.5V
Voltage - Output (Max): 0V
Voltage Dropout (Max): 0.41V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 2.35 mA
Current - Supply (Max): 23 mA
PSRR: 108dB ~ 28dB (120Hz ~ 10MHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 12-WFDFN Exposed Pad
Supplier Device Package: 12-DFN (3x3)
