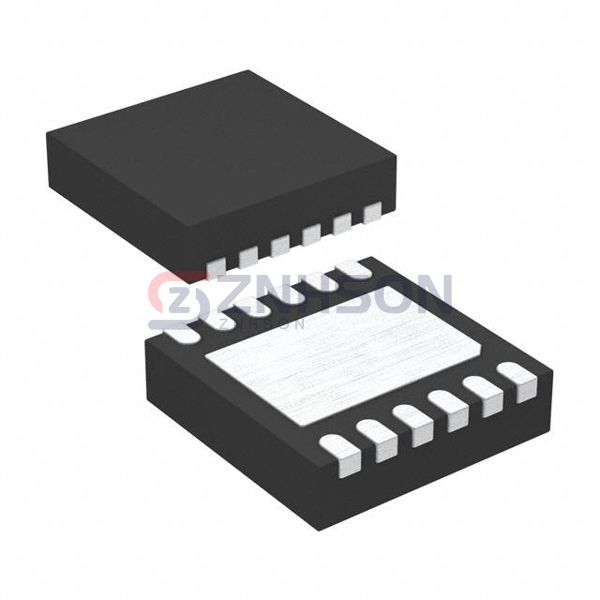

LT3094EDD#PBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LIN NEG ADJ 500MA 12DFN

Datasheet:

LT3094EDD#PBF Datasheet

$7.54

Available to order

Reference Price (USD)

$6.78000

25+

$4.50400

100+

$3.72400

250+

$3.53780

500+

$3.45800

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Choose Analog Devices Inc.'s LT3094EDD#PBF for superior Linear Voltage Regulation in our PMIC - Voltage Regulators - Linear category. These ICs are built to handle demanding power management tasks with features like high accuracy, low dropout, and extended temperature range. Ideal for applications in aerospace, defense, and renewable energy systems, LT3094EDD#PBF ensures consistent performance in harsh environments. Analog Devices Inc. prides itself on delivering cutting-edge solutions tailored to your needs. Submit an inquiry today and let us help you find the perfect voltage regulator for your application.

Specifications

Product Status: Active
Output Configuration: Negative
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): -2.3V
Voltage - Output (Min/Fixed): -19.5V
Voltage - Output (Max): 0V
Voltage Dropout (Max): 0.41V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 2.35 mA
Current - Supply (Max): 23 mA
PSRR: 108dB ~ 28dB (120Hz ~ 10MHz)
Control Features: Enable, Power Good, Soft Start
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 12-WFDFN Exposed Pad
Supplier Device Package: 12-DFN (3x3)
