LT3091HR#PBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LIN NEG ADJ 1.5A 7DDPAK

Datasheet:

LT3091HR#PBF Datasheet

$10.87

Available to order

Reference Price (USD)

$9.87000

25+

$6.55280

100+

$5.41800

250+

$5.14712

500+

$5.03100

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your circuit designs with Analog Devices Inc.'s LT3091HR#PBF, a high-performance Linear Voltage Regulator from our PMIC - Voltage Regulators - Linear category. These ICs are crafted to deliver precise voltage control, making them suitable for sensitive electronic applications. With features like fast transient response, wide input voltage range, and excellent thermal performance, LT3091HR#PBF is perfect for use in power supplies, audio equipment, and more. Analog Devices Inc. is a trusted name in integrated circuits, offering reliability and innovation. Contact our sales team today to place an order or request technical support.

Specifications

Product Status: Active
Output Configuration: Negative
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): -36V
Voltage - Output (Min/Fixed): 0V
Voltage - Output (Max): -32V
Voltage Dropout (Max): 0.525V @ 1.5A
Current - Output: 1.5A
Current - Quiescent (Iq): 50.5 µA
Current - Supply (Max): -
PSRR: 85dB ~ 20dB (120Hz ~ 1MHz)
Control Features: Current Limit, Enable
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 150°C
Mounting Type: Surface Mount

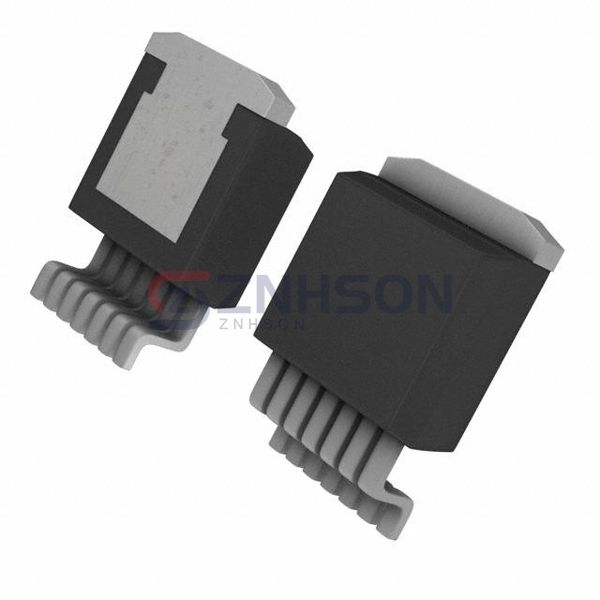

Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package: 7-DDPAK
