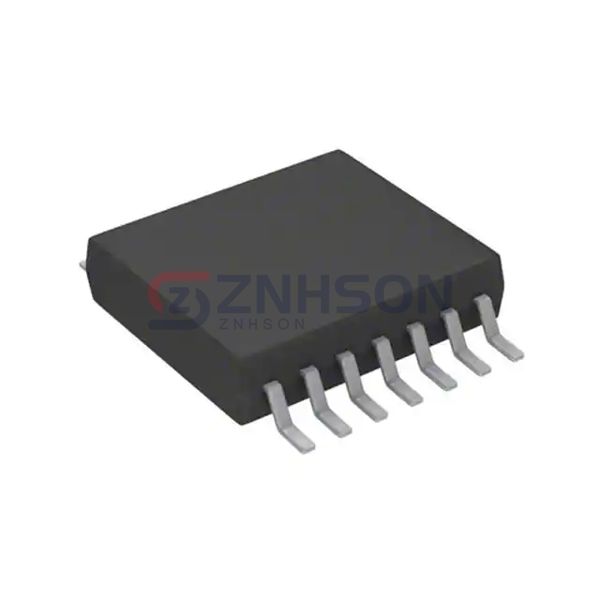

LM5156HQPWPRQ1

Texas Instruments

Manufacturer

Texas Instruments

Description:

2.2MHZ WIDE VIN AUTOMOTIVE NON-S

Datasheet:

LM5156HQPWPRQ1 Datasheet

$2.69

Available to order

Reference Price (USD)

$2.69000

500+

$2.6631

1000+

$2.6362

1500+

$2.6093

2000+

$2.5824

2500+

$2.5555

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Optimize your power solutions with the LM5156HQPWPRQ1 DC DC Switching Controller from Texas Instruments. This high-efficiency PMIC voltage regulator is designed for applications requiring precise voltage regulation, such as data centers, robotics, and consumer electronics. With its compact design and advanced protection features, Texas Instruments's LM5156HQPWPRQ1 provides a reliable and cost-effective solution for your power needs. Interested in learning more? Submit an inquiry today and let our experts guide you.

Specifications

Product Status: Active
Output Type: Transistor Driver
Function: Step-Up, Step-Up/Step-Down
Output Configuration: Positive
Topology: Boost, Flyback, SEPIC
Number of Outputs: 1
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 2.97V ~ 60V
Frequency - Switching: 100kHz ~ 2.2MHz
Duty Cycle (Max): 93%
Synchronous Rectifier: No
Clock Sync: No
Serial Interfaces: -
Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package: 14-HTSSOP
