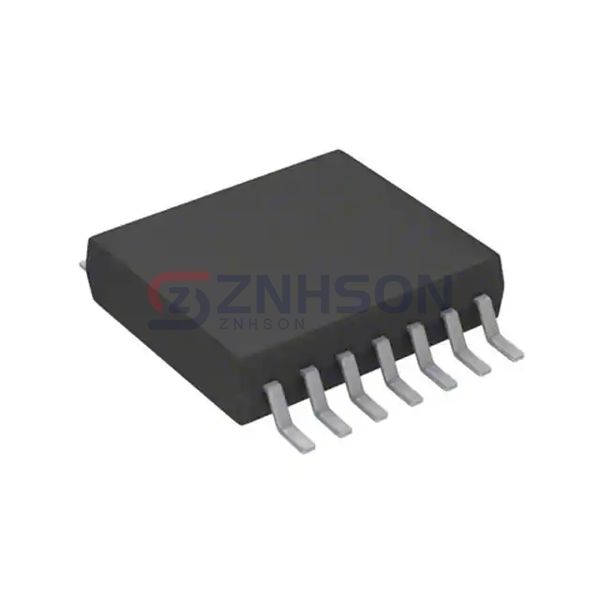

LM5156HPWPR

Texas Instruments

Manufacturer

Texas Instruments

Description:

2.2MHZ WIDE INPUT NONSYNCHRONOUS

Datasheet:

LM5156HPWPR Datasheet

$2.28

Available to order

Reference Price (USD)

$2.28000

500+

$2.2572

1000+

$2.2344

1500+

$2.2116

2000+

$2.1888

2500+

$2.166

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The LM5156HPWPR by Texas Instruments is a versatile DC DC Switching Controller that delivers exceptional performance in power management. Ideal for applications such as LED lighting, networking hardware, and battery-powered devices, this PMIC voltage regulator offers features like wide input voltage range and fast transient response. Texas Instruments's commitment to quality ensures that the LM5156HPWPR meets the highest industry standards. For more details or to place an order, reach out to our sales team now.

Specifications

Product Status: Active
Output Type: Transistor Driver
Function: Step-Up, Step-Up/Step-Down
Output Configuration: Positive
Topology: Boost, Flyback, SEPIC
Number of Outputs: 1
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 2.97V ~ 60V
Frequency - Switching: 100kHz ~ 2.2MHz
Duty Cycle (Max): 93%
Synchronous Rectifier: No
Clock Sync: No
Serial Interfaces: -
Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package: 14-HTSSOP
