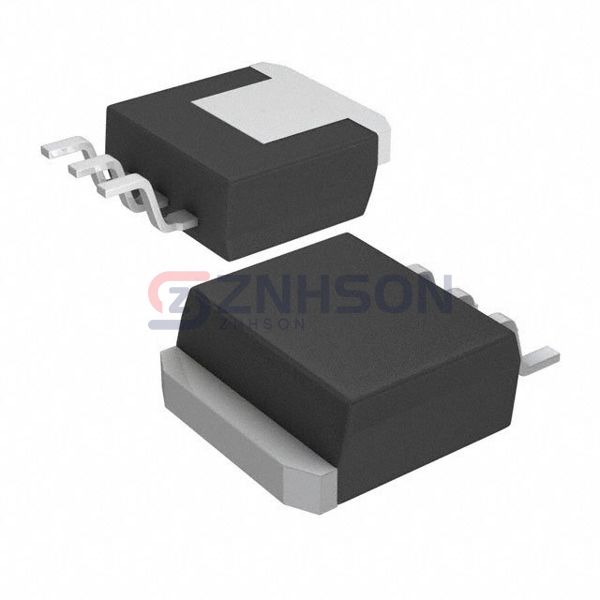

LM2940CSX-15/NOPB

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN 15V 1A DDPAK/TO263-3

Datasheet:

LM2940CSX-15/NOPB Datasheet

$2.34

Available to order

Reference Price (USD)

500+

$1.08150

1,000+

$0.89610

2,500+

$0.83430

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your circuit designs with Texas Instruments's LM2940CSX-15/NOPB, a high-performance Linear Voltage Regulator from our PMIC - Voltage Regulators - Linear category. These ICs are crafted to deliver precise voltage control, making them suitable for sensitive electronic applications. With features like fast transient response, wide input voltage range, and excellent thermal performance, LM2940CSX-15/NOPB is perfect for use in power supplies, audio equipment, and more. Texas Instruments is a trusted name in integrated circuits, offering reliability and innovation. Contact our sales team today to place an order or request technical support.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 26V
Voltage - Output (Min/Fixed): 15V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.8V @ 1A
Current - Output: 1A
Current - Quiescent (Iq): 10 mA
Current - Supply (Max): 15 mA
PSRR: 66dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: 0°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device Package: DDPAK/TO-263-3
