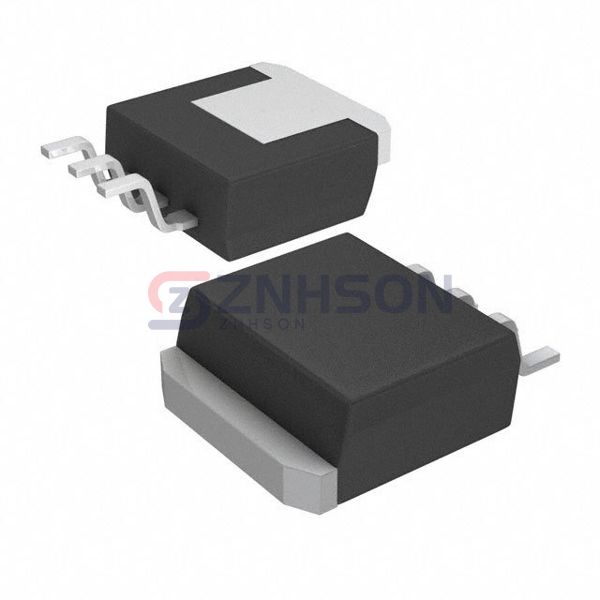

LM2940CSX-12/NOPB

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LIN 12V 1A DDPAK/TO263-3

Datasheet:

LM2940CSX-12/NOPB Datasheet

$2.34

Available to order

Reference Price (USD)

$2.34000

500+

$2.3166

1000+

$2.2932

1500+

$2.2698

2000+

$2.2464

2500+

$2.223

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Upgrade your power management systems with Texas Instruments's LM2940CSX-12/NOPB, a premium Linear Voltage Regulator from our PMIC - Voltage Regulators - Linear collection. These ICs are engineered for precision and efficiency, making them ideal for applications requiring consistent voltage output. Key features include low dropout voltage, thermal shutdown protection, and high ripple rejection. Commonly used in telecommunications, medical devices, and embedded systems, LM2940CSX-12/NOPB ensures reliable performance under varying conditions. Trust Texas Instruments for superior voltage regulation solutions. Submit your inquiry now to learn more about how LM2940CSX-12/NOPB can enhance your projects.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 26V
Voltage - Output (Min/Fixed): 12V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.8V @ 1A
Current - Output: 1A
Current - Quiescent (Iq): 10 mA
Current - Supply (Max): 15 mA
PSRR: 66dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: 0°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device Package: DDPAK/TO-263-3
