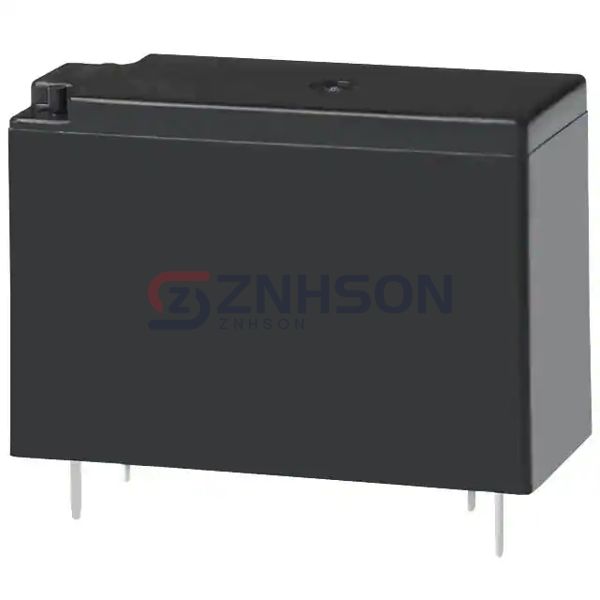

JW1SN-DC12V
Panasonic Electric Works
Panasonic Electric Works
RELAY GEN PURPOSE SPDT 5A 12V
$3.71
Available to order
Reference Price (USD)
1+
$3.71300
500+
$3.67587
1000+
$3.63874
1500+
$3.60161
2000+
$3.56448
2500+
$3.52735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Energy-efficient Panasonic Electric Works JW1SN-DC12V Power Relays deliver consistent performance for high-current circuits. Key advantages include surge protection, self-cleaning contacts, and multiple mounting options. Widely adopted in EV charging stations, solar inverters, and UPS systems. Let our engineers help you select the optimal relay configuration!
Specifications
- Product Status: Active
- Mounting Type: Through Hole
- Coil Voltage: 12VDC
- Contact Form: SPDT (1 Form C)
- Contact Rating (Current): 5 A
- Switching Voltage: 250VAC, 30VDC - Max
- Coil Current: 44 mA
- Coil Type: Non Latching
- Features: -
- Termination Style: PC Pin
- Seal Rating: Sealed - Fully
- Coil Insulation: Class E
- Must Operate Voltage: 8.4 VDC
- Must Release Voltage: 1.2 VDC
- Operate Time: 15 ms
- Release Time: 5 ms
- Operating Temperature: -40°C ~ 60°C
- Contact Material: Silver Nickel (AgNi)
- Relay Type: General Purpose
