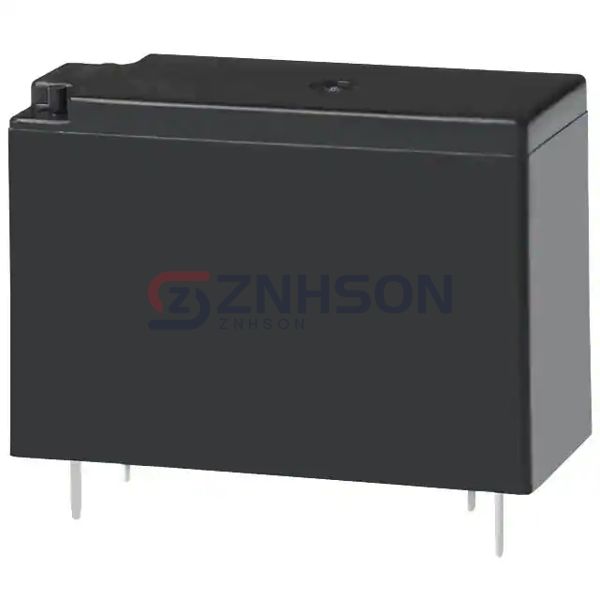

JW1FHN-DC24V
Panasonic Electric Works

Panasonic Electric Works
RELAY GEN PURPOSE SPDT 10A 24V
$2.51
Available to order
Reference Price (USD)
1+
$2.50780
500+
$2.482722
1000+
$2.457644
1500+
$2.432566
2000+
$2.407488
2500+
$2.38241
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Panasonic Electric Works JW1FHN-DC24V series represents the next generation of high-amperage Power Relays, combining innovative coil designs with vibration-resistant mechanics. Ideal for harsh environments in marine, aerospace, and oil/gas industries. Features include LED operation indicators and solder/quick-connect terminals. Inquire about our relay customization services today!
Specifications
- Product Status: Active
- Mounting Type: Through Hole
- Coil Voltage: 24VDC
- Contact Form: SPDT (1 Form C)
- Contact Rating (Current): 10 A
- Switching Voltage: 250VAC, 30VDC - Max
- Coil Current: 22 mA
- Coil Type: Non Latching
- Features: -
- Termination Style: PC Pin
- Seal Rating: Sealed - Flux Protection
- Coil Insulation: Class E
- Must Operate Voltage: 16.8 VDC
- Must Release Voltage: 2.4 VDC
- Operate Time: 15 ms
- Release Time: 5 ms
- Operating Temperature: -40°C ~ 60°C
- Contact Material: Silver Nickel (AgNi)
- Relay Type: General Purpose
