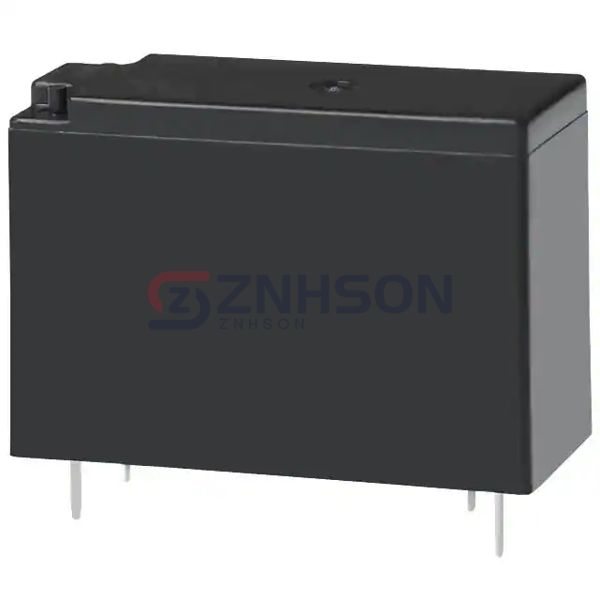

JW1AFHN-B-DC24V-F
Panasonic Electric Works
Panasonic Electric Works
RELAY GEN PURPOSE SPST 10A 24V
$2.53
Available to order
Reference Price (USD)
1+
$2.52720
500+
$2.501928
1000+
$2.476656
1500+
$2.451384
2000+
$2.426112
2500+
$2.40084
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power management with Panasonic Electric Works JW1AFHN-B-DC24V-F advanced Over-2A Relays. These professional-grade components offer RFI suppression, manual override options, and fail-safe operation modes. Essential for data centers, railway signaling, and generator controls. Submit your inquiry to access our full technical specifications and CAD models!
Specifications
- Product Status: Active
- Mounting Type: Through Hole
- Coil Voltage: 24VDC
- Contact Form: SPST-NO (1 Form A)
- Contact Rating (Current): 10 A
- Switching Voltage: 250VAC, 30VDC - Max
- Coil Current: 22 mA
- Coil Type: Non Latching
- Features: -
- Termination Style: PC Pin
- Seal Rating: Sealed - Flux Protection
- Coil Insulation: Class B
- Must Operate Voltage: 16.8 VDC
- Must Release Voltage: 2.4 VDC
- Operate Time: 15 ms
- Release Time: 5 ms
- Operating Temperature: -40°C ~ 60°C
- Contact Material: Silver Tin Oxide (AgSnO)
- Relay Type: General Purpose
