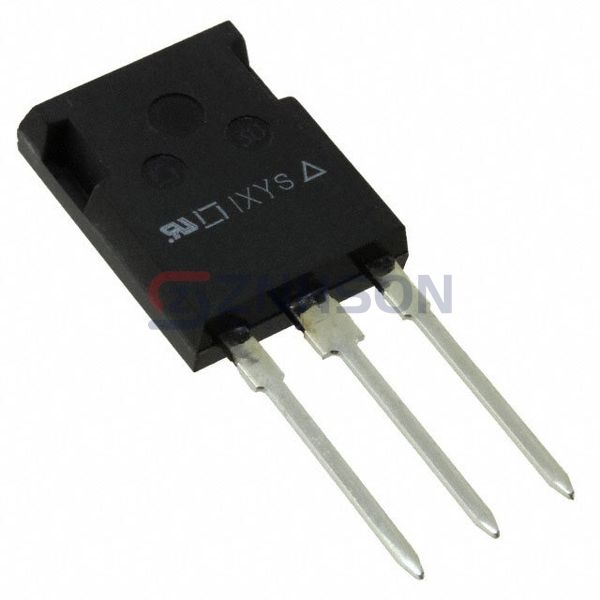

IXGR120N60B
IXYS
IXYS
IGBT 600V 156A 520W ISOPLUS247
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power electronics with IXGR120N60B Single IGBTs by IXYS, engineered for precision and durability. Perfect for inverters, welding equipment, and automotive applications, these transistors provide fast switching speeds and excellent thermal stability. Key features include high voltage tolerance, low power loss, and compact design. Trust IXYS for top-quality components that meet global standards. Request a quote now to learn more about how IXGR120N60B can enhance your projects.
Specifications
- Product Status: Obsolete
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 156 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 100A
- Power - Max: 520 W
- Switching Energy: 2.4mJ (on), 5.5mJ (off)
- Input Type: Standard
- Gate Charge: 350 nC
- Td (on/off) @ 25°C: 60ns/200ns
- Test Condition: 480V, 100A, 2.4Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: ISOPLUS247™
