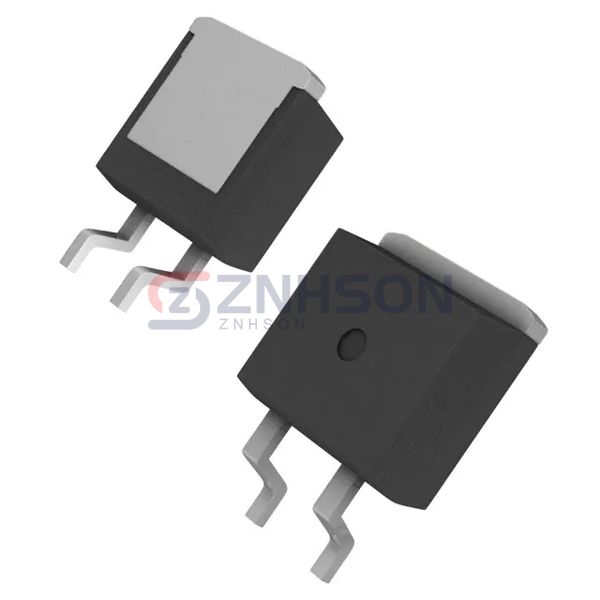

IXGA20N100
IXYS
IXYS
IGBT 1000V 40A 150W TO263
$0.00
Available to order
Reference Price (USD)
50+
$5.71720
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance IXGA20N100 Single IGBTs from IXYS, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, IXGA20N100 ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1000 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 3V @ 15V, 20A
- Power - Max: 150 W
- Switching Energy: 3.5mJ (off)
- Input Type: Standard
- Gate Charge: 73 nC
- Td (on/off) @ 25°C: 30ns/350ns
- Test Condition: 800V, 20A, 47Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263AA
