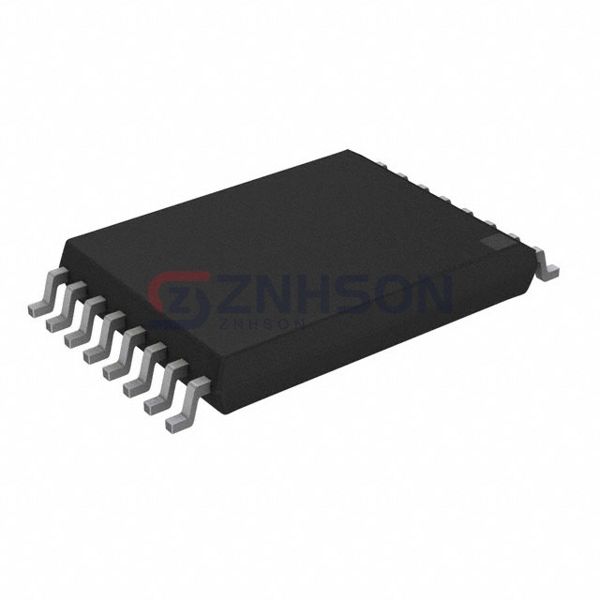

ISO7840DWW
Texas Instruments
Texas Instruments
DGTL ISO 5700VRMS 4CH GP 16SOIC
$12.19
Available to order
Reference Price (USD)
90+
$10.22678
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Texas Instruments ISO7840DWW Digital Isolators, featuring state-of-the-art isolation technology. These isolators offer high noise immunity, minimal signal distortion, and easy integration, perfect for servo drives, battery management, and audio equipment. Texas Instruments ISO7840DWW is synonymous with reliability. Ready to place an order or request a consultation? Reach out to our sales team for assistance!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Type: General Purpose
- Isolated Power: No
- Number of Channels: 4
- Inputs - Side 1/Side 2: 4/0
- Channel Type: Unidirectional
- Voltage - Isolation: 5700Vrms
- Common Mode Transient Immunity (Min): 100kV/µs
- Data Rate: 100Mbps
- Propagation Delay tpLH / tpHL (Max): 16ns, 16ns
- Pulse Width Distortion (Max): 4.1ns
- Rise / Fall Time (Typ): 1.7ns, 1.9ns
- Voltage - Supply: 2.25V ~ 5.5V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.551", 14.00mm Width)
- Supplier Device Package: 16-SOIC
Related Products
Texas Instruments
ISO7762FQDWQ1
Analog Devices Inc.
ADUM1100BRZ-RL7
Analog Devices Inc.
ADUM2201BRWZ
Analog Devices Inc.
ADUM6201CRIZ
Skyworks Solutions Inc.
SI8630BD-B-IS
Texas Instruments
ISO7330FCDWR
Analog Devices Inc./Maxim Integrated
MAX14931FAWE+
Skyworks Solutions Inc.

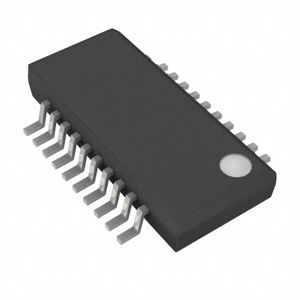

SI8380PM-IUR
Skyworks Solutions Inc.

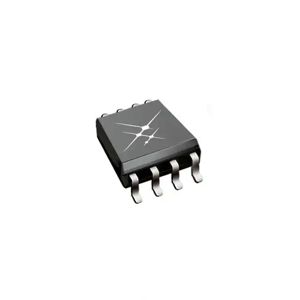

SI8602AC-B-ISR
