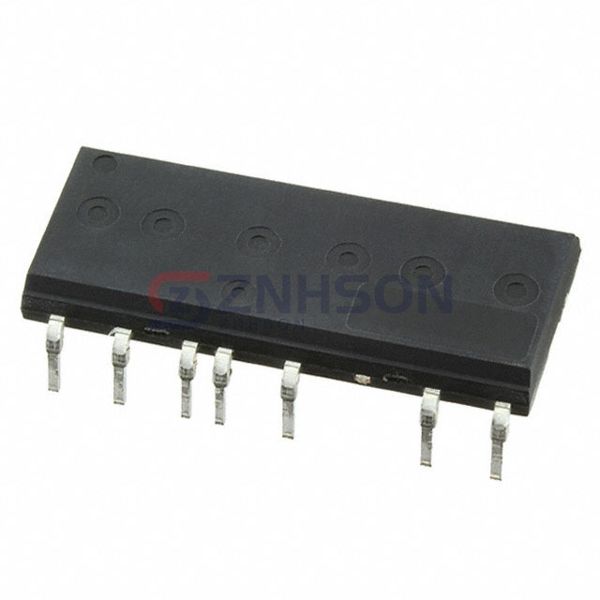

IRSM506-076DA
Infineon Technologies
Infineon Technologies
IC MICRO MCM DRIVER 23DIP
$0.00
Available to order
Reference Price (USD)
240+
$8.53908
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Infineon Technologies IRSM506-076DA series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Obsolete
- Output Configuration: Half Bridge (3)
- Applications: AC Motors
- Interface: Logic
- Load Type: Inductive
- Technology: IGBT
- Rds On (Typ): -
- Current - Output / Channel: 4A
- Current - Peak Output: 15A
- Voltage - Supply: 13.5V ~ 16.5V
- Voltage - Load: 480V (Max)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Bootstrap Circuit
- Fault Protection: UVLO
- Mounting Type: Through Hole
- Package / Case: 32-PowerDIP Module, 23 Leads
- Supplier Device Package: 23-DIP
