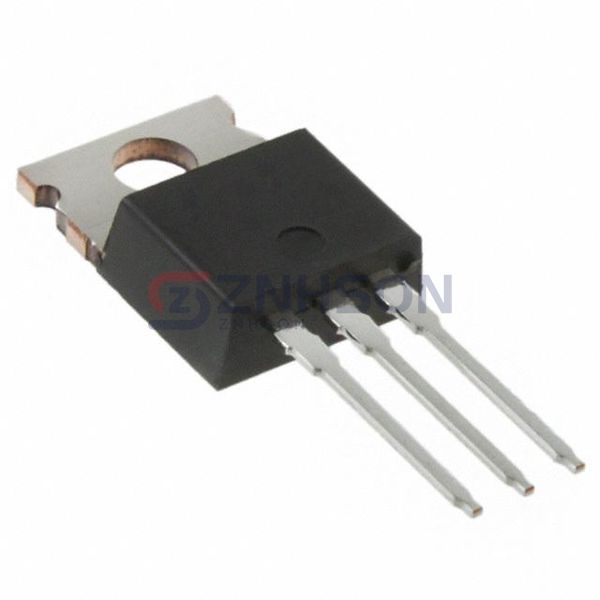

IRF9540PBF
Vishay Siliconix
Vishay Siliconix
MOSFET P-CH 100V 19A TO220AB
$2.25
Available to order
Reference Price (USD)
1+
$1.91000
50+
$1.55500
100+
$1.40500
500+
$1.10484
1,000+
$0.92479
2,500+
$0.86478
5,000+
$0.83477
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover IRF9540PBF, a versatile Transistors - FETs, MOSFETs - Single solution from Vishay Siliconix, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 19A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 200mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 61 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1400 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 150W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
