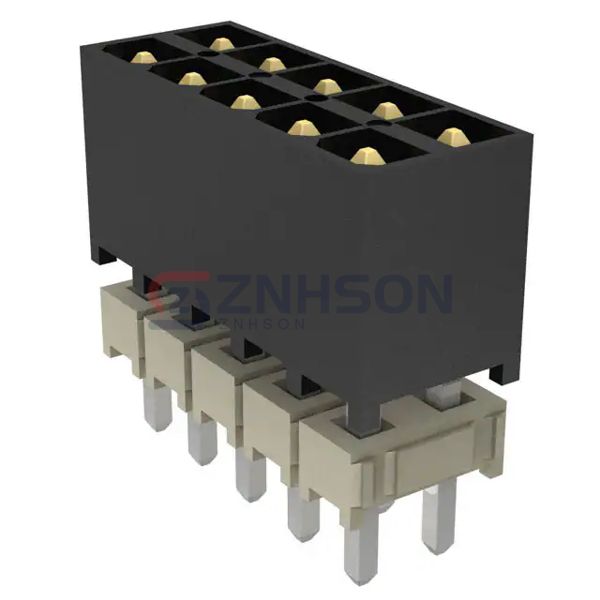

IPT1-105-02-L-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 10POS 2.54MM
$4.72
Available to order
Reference Price (USD)
1+
$2.81000
10+
$2.37600
100+
$1.83600
500+
$1.51200
1,000+
$1.40400
5,000+
$1.32300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPT1-105-02-L-D Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.155" (3.94mm)
- Contact Length - Post: 0.104" (2.64mm)
- Overall Contact Length: 0.470" (11.94mm)
- Insulation Height: 0.366" (9.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.3A per Contact
- Voltage Rating: 775VAC, 1095VDC
Related Products
Samtec Inc.
EHT-107-01-SM-D-SM-LC-P
Samtec Inc.
BBD-125-G-D
TE Connectivity AMP Connectors
6-103735-9
TE Connectivity AMP Connectors
1-1827872-1
Samtec Inc.
TSW-143-07-S-S
Mill-Max Manufacturing Corp.
852-40-090-10-001000
Samtec Inc.

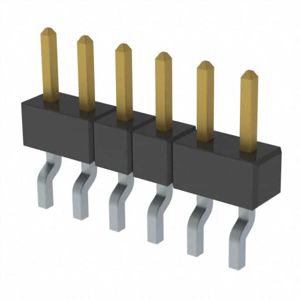

MMT-106-01-L-SH-TR
HARTING
15120206601000
Samtec Inc.

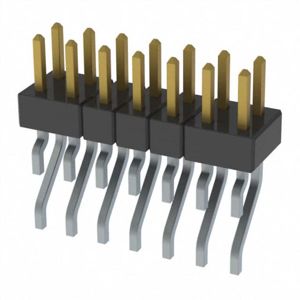

MMT-107-01-S-DH-K-TR
