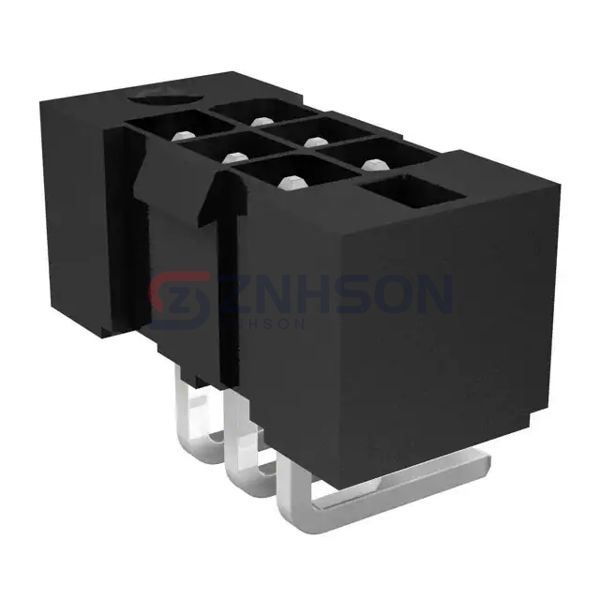

IPBT-103-H1-T-D-RA-GP

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.165" (4.20mm)
• Number of Positions: 6
• Number of Rows: 2
• Row Spacing - Mating: 0.165" (4.20mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Locking Ramp
• Contact Length - Mating: 0.260" (6.60mm)
• Contact Length - Post: 0.147" (3.73mm)
• Overall Contact Length: -
• Insulation Height: 0.424" (10.77mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Liquid Crystal Polymer (LCP)
• Features: Mating Flange
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): -
• Voltage Rating: 400VAC, 565VDC
