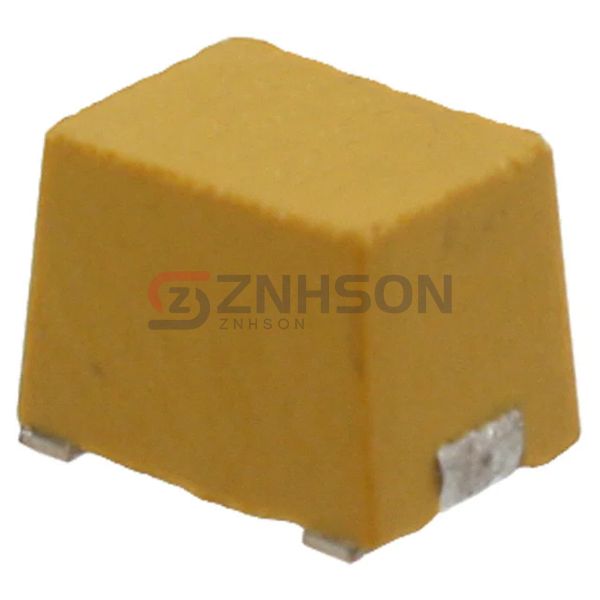

IMC1812ER560K
Vishay Dale
Vishay Dale
FIXED IND 56UH 135MA 5.5 OHM SMD
$0.70
Available to order
Reference Price (USD)
1,000+
$0.66560
2,500+
$0.64480
5,000+
$0.62400
12,500+
$0.60320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with IMC1812ER560K Fixed Inductors from Vishay Dale, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. IMC1812ER560K ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Iron Powder
- Inductance: 56 µH
- Tolerance: ±10%
- Current Rating (Amps): 135 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 5.5Ohm Max
- Q @ Freq: 50 @ 2.52MHz
- Frequency - Self Resonant: 9MHz
- Ratings: -
- Operating Temperature: -55°C ~ 125°C
- Inductance Frequency - Test: 2.52 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1812 (4532 Metric)
- Supplier Device Package: 1812
- Size / Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max): 0.134" (3.40mm)
