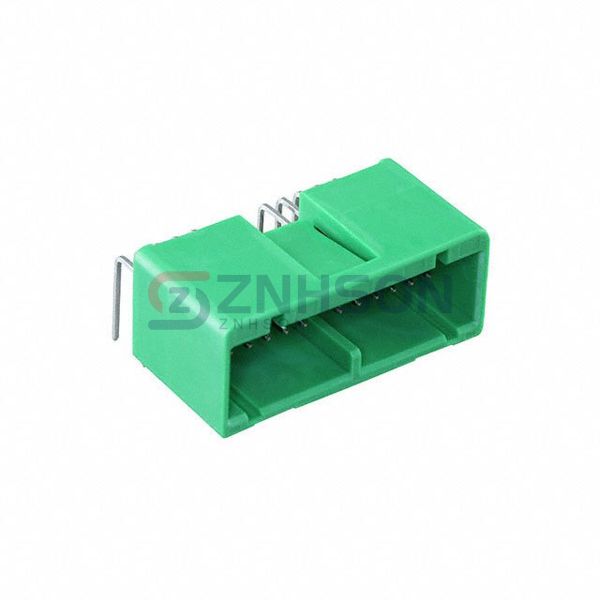

IL-AG5-22P-D3L2

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.098" (2.50mm)
• Number of Positions: 22
• Number of Rows: 2
• Row Spacing - Mating: 0.118" (3.00mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.331" (8.40mm)
• Contact Length - Post: 0.138" (3.50mm)
• Overall Contact Length: -
• Insulation Height: 0.591" (15.00mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polybutylene Terephthalate (PBT)
• Features: Board Guide
• Operating Temperature: -40°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: -
• Insulation Color: Green
• Current Rating (Amps): 3A per Contact
• Voltage Rating: -
