HUF76009P3
Fairchild Semiconductor
Fairchild Semiconductor
N-CHANNEL POWER MOSFET
$0.53
Available to order
Reference Price (USD)
1+
$0.53000
500+
$0.5247
1000+
$0.5194
1500+
$0.5141
2000+
$0.5088
2500+
$0.5035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover HUF76009P3, a versatile Transistors - FETs, MOSFETs - Single solution from Fairchild Semiconductor, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 27mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 13 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 470 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 41W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
Related Products
Infineon Technologies
IRL2910STRRPBF
onsemi
FQPF7P20
Nexperia USA Inc.
PSMN6R0-30YLB,115
Nexperia USA Inc.
PSMN1R2-55SLH
onsemi
CPH3431-TL-E
Infineon Technologies
IRLML9303TRPBF
Toshiba Semiconductor and Storage
TPH4R606NH,L1Q
IXYS
IXFX44N80P
Infineon Technologies

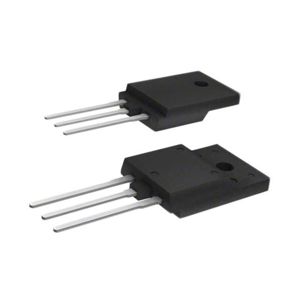

IPA50R280CEXKSA2
