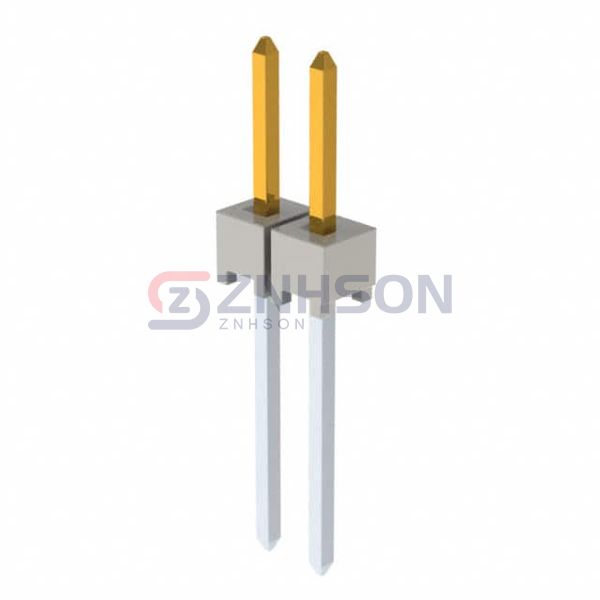

HTSW-102-09-L-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 2POS 2.54MM
$0.47
Available to order
Reference Price (USD)
1+
$0.27000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HTSW-102-09-L-S Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.400" (10.16mm)
- Overall Contact Length: 0.730" (18.54mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: -
Related Products
Samtec Inc.
FTS-114-03-L-DV-P
Samtec Inc.
ZSS-125-07-L-D-1100
TE Connectivity AMP Connectors

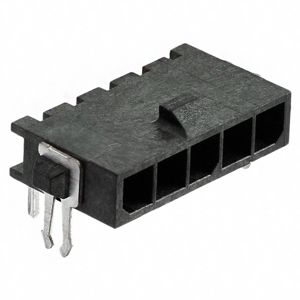

2-1445088-5
Samtec Inc.

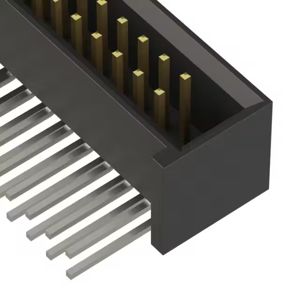

SHF-111-01-L-D-RA
Molex

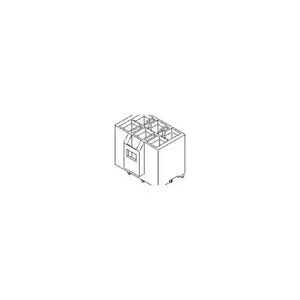

53728-0619
Hirose Electric Co Ltd

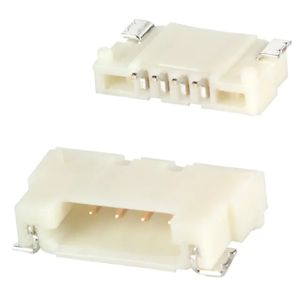

DF14-4P-1.25H(54)
TE Connectivity AMP Connectors

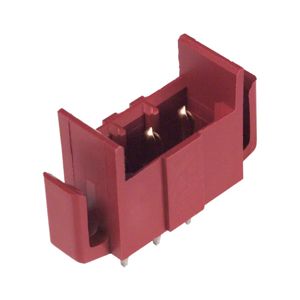

640498-4
