HPM-02-04-T-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 2POS 5.08MM
$1.07
Available to order
Reference Price (USD)
1+
$1.07000
500+
$1.0593
1000+
$1.0486
1500+
$1.0379
2000+
$1.0272
2500+
$1.0165
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with HPM-02-04-T-S Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.830" (21.08mm)
- Contact Length - Post: 0.161" (4.09mm)
- Overall Contact Length: 1.091" (27.71mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 13.2A
- Voltage Rating: 850VAC, 1200VDC
Related Products
Harwin Inc.
M22-5320205
Samtec Inc.
FTE-112-01-G-DH-TR
TE Connectivity AMP Connectors
9-146253-0-14
Samtec Inc.

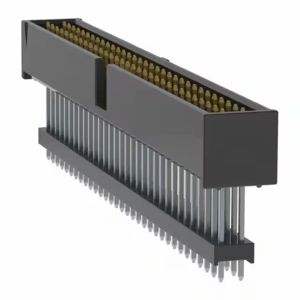

ZSS-132-03-S-D-702
Preci-Dip
351-80-130-00-017101
Samtec Inc.

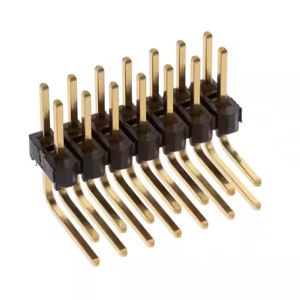

TSW-107-22-G-D-RA
Amphenol ICC (FCI)

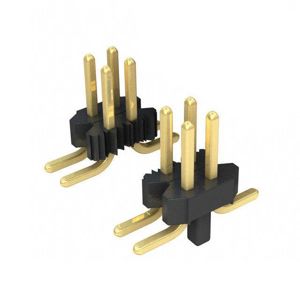

20021121-00018T8LF
Sullins Connector Solutions

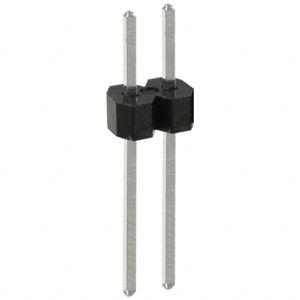

PEC02SADN
Mill-Max Manufacturing Corp.

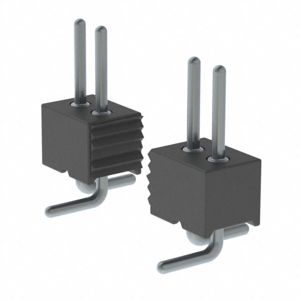

850-40-018-30-002000
