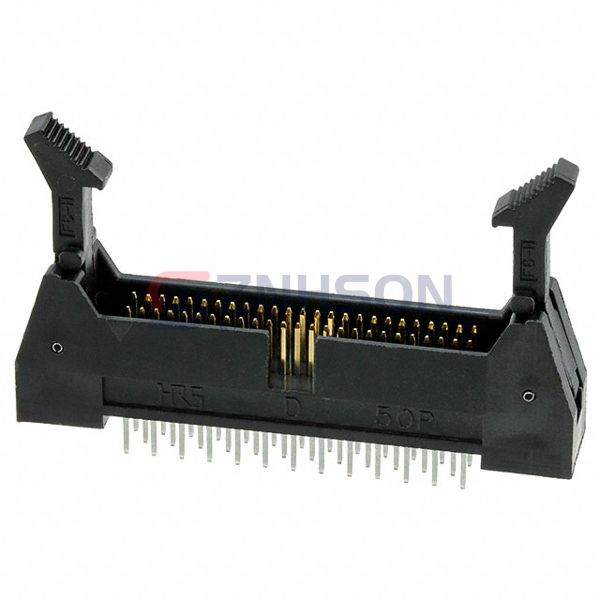

HIF6H-50PA-1.27DSA(71)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 50POS 1.27MM
$6.35
Available to order
Reference Price (USD)
1+
$5.50000
20+
$5.28000
100+
$4.40000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF6H-50PA-1.27DSA(71) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.205" (5.21mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.563" (14.30mm)
- Insulation Height: 0.606" (15.39mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.5A
- Voltage Rating: 300V
