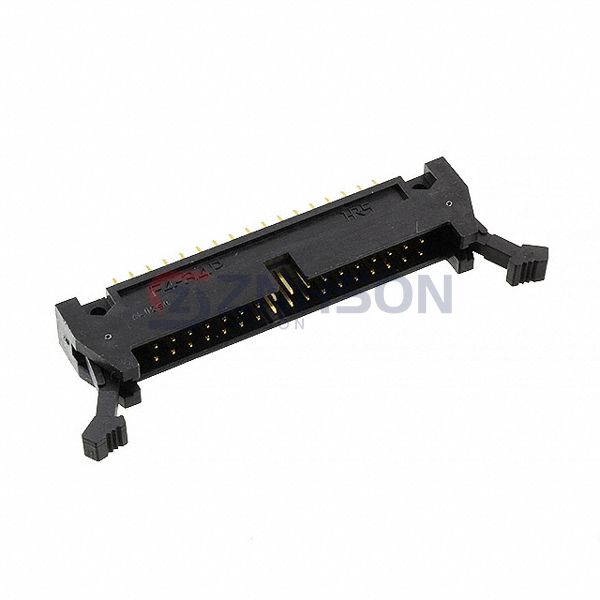

HIF4-34P-3.18DSA(01)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 34POS 3.18MM
$18.12
Available to order
Reference Price (USD)
1+
$17.47000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier connectivity with HIF4-34P-3.18DSA(01) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, Hirose Electric Co Ltd has you covered. Interested? Reach out to us for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.125" (3.18mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.125" (3.18mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.201" (5.10mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: 0.673" (17.09mm)
- Insulation Height: 0.720" (18.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
