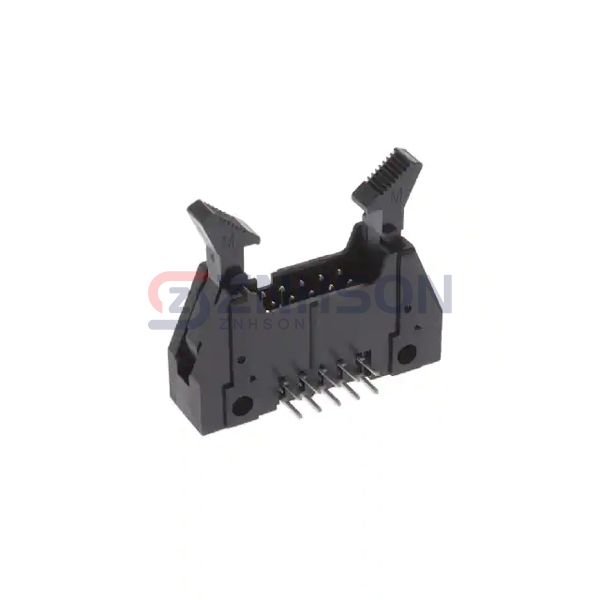

HIF3BA-10PA-2.54DS(63)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 10POS 2.54MM
$3.28
Available to order
Reference Price (USD)
1+
$3.28000
500+
$3.2472
1000+
$3.2144
1500+
$3.1816
2000+
$3.1488
2500+
$3.116
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The HIF3BA-10PA-2.54DS(63) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 200V
