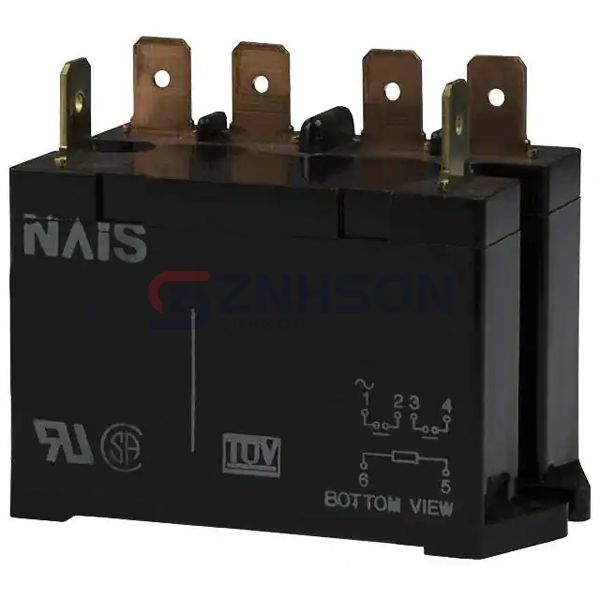

HE2AN-Q-DC12V
Panasonic Electric Works
Panasonic Electric Works
RELAY GEN PURPOSE DPST 25A 12V
$16.73
Available to order
Reference Price (USD)
1+
$20.16000
10+
$19.15200
25+
$18.14400
50+
$17.13600
100+
$16.12800
250+
$15.12000
500+
$14.11200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Panasonic Electric Works HE2AN-Q-DC12V series represents the next generation of high-amperage Power Relays, combining innovative coil designs with vibration-resistant mechanics. Ideal for harsh environments in marine, aerospace, and oil/gas industries. Features include LED operation indicators and solder/quick-connect terminals. Inquire about our relay customization services today!
Specifications
- Product Status: Active
- Mounting Type: Chassis Mount
- Coil Voltage: 12VDC
- Contact Form: DPST-NO (2 Form A)
- Contact Rating (Current): 25 A
- Switching Voltage: 277VAC, 30VDC - Max
- Coil Current: 160 mA
- Coil Type: Non Latching
- Features: -
- Termination Style: Quick Connect - 0.250" (6.3mm)
- Seal Rating: -
- Coil Insulation: -
- Must Operate Voltage: 8.4 VDC
- Must Release Voltage: 1.2 VDC
- Operate Time: 30 ms
- Release Time: 10 ms
- Operating Temperature: -50°C ~ 55°C
- Contact Material: Silver Tin Oxide (AgSnO)
- Relay Type: General Purpose
