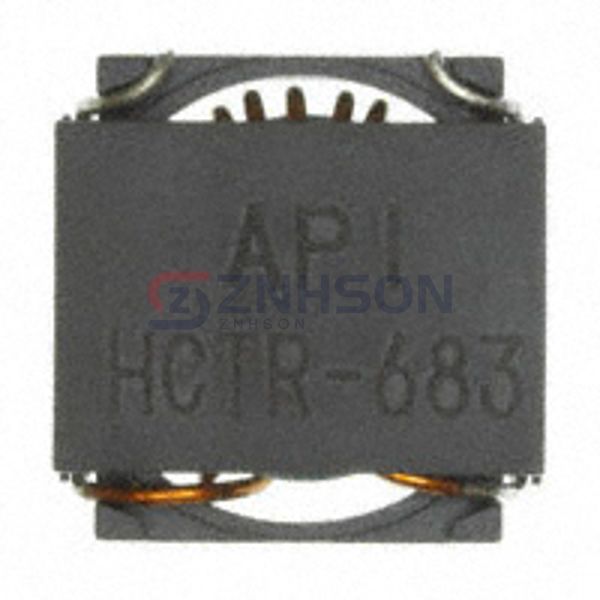

HCTR-683
API Delevan Inc.
API Delevan Inc.
FIXED IND 22UH 7.87A 17.5MOHM SM
$5.40
Available to order
Reference Price (USD)
1,000+
$4.39040
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic designs with HCTR-683 Fixed Inductors from API Delevan Inc., built for precision and durability. These inductors offer low DCR, high self-resonant frequency, and excellent temperature stability, making them ideal for data centers, robotics, and smart home devices. HCTR-683 is synonymous with quality. Need assistance with product selection? Request a consultation today!
Specifications
- Product Status: Active
- Type: Toroidal
- Material - Core: Iron Powder
- Inductance: 22 µH
- Tolerance: ±25%
- Current Rating (Amps): 7.87 A
- Current - Saturation (Isat): -
- Shielding: Shielded
- DC Resistance (DCR): 17.5mOhm Max
- Q @ Freq: 30 @ 100kHz
- Frequency - Self Resonant: 21MHz
- Ratings: -
- Operating Temperature: -30°C ~ 130°C
- Inductance Frequency - Test: 100 kHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Size / Dimension: 0.945" L x 0.940" W (24.00mm x 23.88mm)
- Height - Seated (Max): 0.400" (10.16mm)
