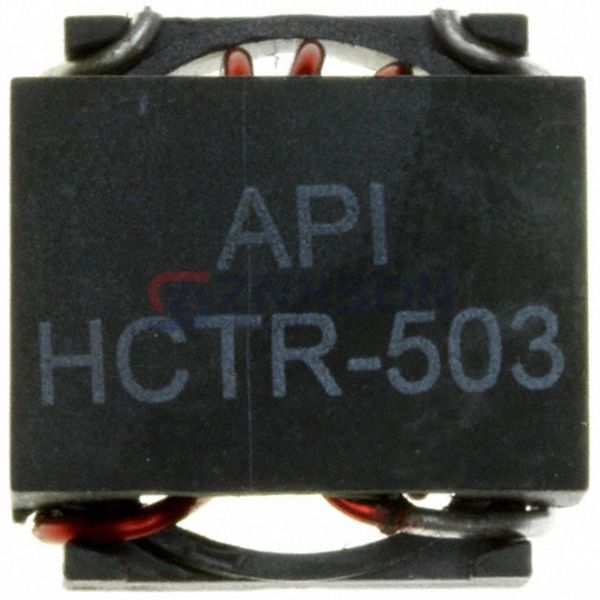

HCTR-503
API Delevan Inc.
API Delevan Inc.
FIXED IND 12.5UH 9.25A 11.4 MOHM
$5.40
Available to order
Reference Price (USD)
1,000+
$4.39040
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality HCTR-503 Fixed Inductors from API Delevan Inc., designed for precision and reliability in electronic circuits. These inductors feature excellent inductance stability, low DC resistance, and high current handling capabilities, making them ideal for power supplies, filters, and RF applications. Whether you're working on consumer electronics or industrial equipment, HCTR-503 delivers consistent performance. Interested in bulk orders or custom solutions? Contact us today for a quote!
Specifications
- Product Status: Active
- Type: Toroidal
- Material - Core: Iron Powder
- Inductance: 12.5 µH
- Tolerance: ±25%
- Current Rating (Amps): 9.25 A
- Current - Saturation (Isat): -
- Shielding: Shielded
- DC Resistance (DCR): 11.4mOhm Max
- Q @ Freq: 23 @ 100kHz
- Frequency - Self Resonant: 35MHz
- Ratings: -
- Operating Temperature: -30°C ~ 130°C
- Inductance Frequency - Test: 100 kHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Size / Dimension: 0.740" L x 0.740" W (18.80mm x 18.80mm)
- Height - Seated (Max): 0.400" (10.16mm)
