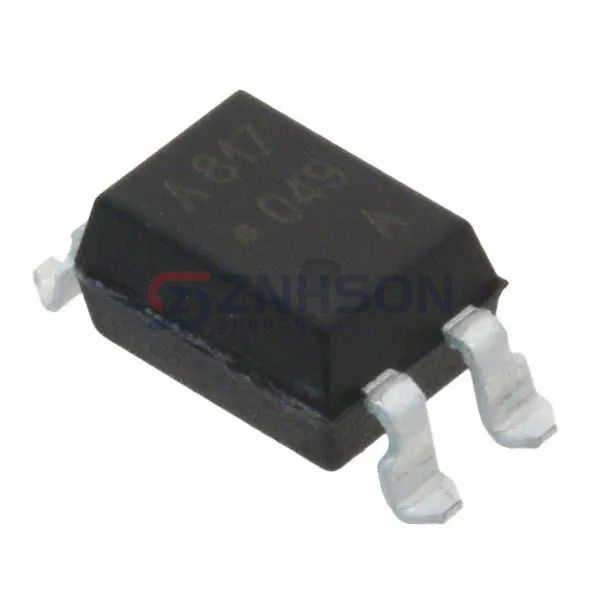

HCPL-817-36BE
Broadcom Limited
Broadcom Limited
OPTOISOLATOR 5KV TRANSISTOR 4SMD
$0.16
Available to order
Reference Price (USD)
1+
$0.15754
500+
$0.1559646
1000+
$0.1543892
1500+
$0.1528138
2000+
$0.1512384
2500+
$0.149663
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior signal isolation with Broadcom Limited's HCPL-817-36BE Optoisolators - Transistor, Photovoltaic Output. These components are ideal for data acquisition, process control, and safety systems, offering fast response times and high insulation resistance. With Broadcom Limited's commitment to innovation, you can expect cutting-edge solutions for your technical challenges. Reach out now to request a quote and elevate your designs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 130% @ 5mA
- Current Transfer Ratio (Max): 260% @ 5mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -30°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SMD
